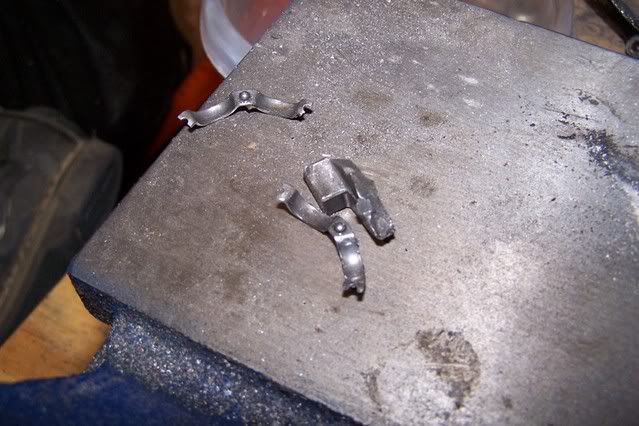

You haven't taken anything apart lately have you? Like maybe you didn't put something together right. Just throughing this out there, but when my motor was originally assembled, the kickstarter gear was backwards. You know it's got a collar on one end, well the collar was turned towards the crank pushing the gear out farther. Far enough to chew on the rivets from the basket. Yeah imagine the look on my face during the first oil change Looked like cottage cheese milk.
Last edited by MICK on August 3rd, 2008, 11:32 am, edited 1 time in total.
last things i did was motor came out of the frame frame got painted motor went back in... Started having issues since.. Overheated and blew off a coolant line off the head while in glamis.. came to the conclusion maybe a leaky crank seal was causing funky jetting and overheated it... so drain the oil and get a big ol mess of shavings... Ohh well.. I have been wanting to split the cases on one of these motors for a while now... now i have the excuse.
well, monday I will probably be up super late finishing up the gen-4 or starting the gen-3, or building Marshalls gen-4, so give me a call if you have a chance to pull the motor by then.
'09 kx450f 4-Poke
Gen-4 trail bike --SOLD--
Gen-3 badass trail/mx bike --SOLD--
Gen-1 built dunes bike --SOLD--
'05 klx110 --SOLD--
'95 pw80
MICK wrote:You haven't taken anything apart lately have you? Like maybe you didn't put something together right. Just throughing this out there, but when my motor was originally assembed, the kickstarter gear was backwards. You know it's got a collar on one end, well the collar was turned towards the crank pushing the gear out farther. Far enough to chew on the rivets from the basket. Yeah imagine the look on my face during the first oil change Looked like cottage cheese milk.
You left yourself open for this one Mick "You mean your new Service Honda?" because Honda didn't do that!
Mike
teem trubble works CR500
(Gen 3 125+CR500 motor)
If I wanted a Yamaha I would have bought a piano!
Im actually fearing the worse.. With the tranny acting up the last few rides.. I think its something in the trans. Was slippin in and out of gear a bit or missing shifts like the shift forks are bent.. usually only betweeen 2nd and 3rd or 3rd and 4th cant remember which. But when it slips motor winds up then all of a sudden it decides to drop back into gear with a nice THUD..
And weirdly the crank took a complete shit at the same time, there was a good 1-2mm of up and down play in it but the bike still started in 1-2 kicks, it just vibrated a little more than usual and compression was down.

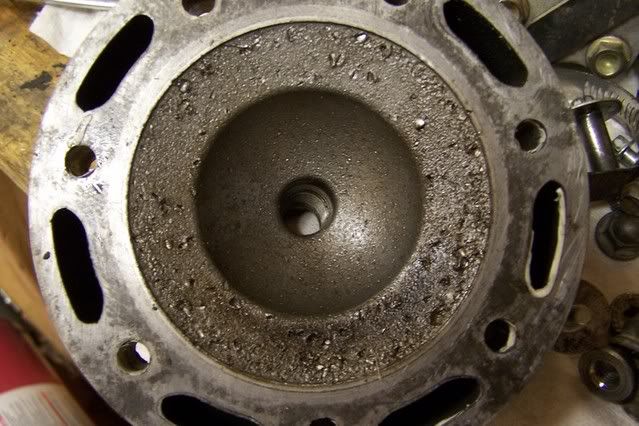

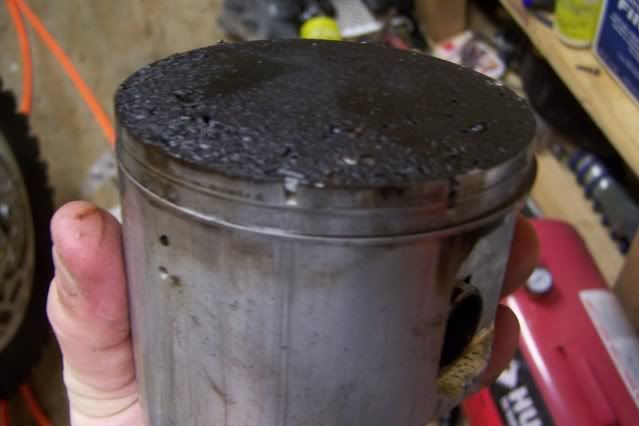

I rode a whole weekend in dumont with the top end looking like this....

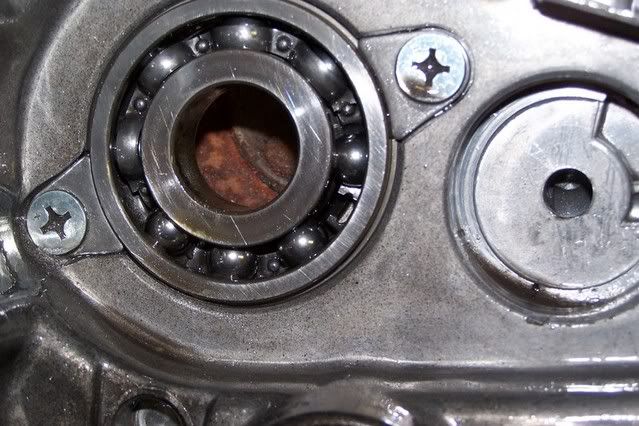

So to sum it up I had a bearing in the tranny coming apart, a gear trashed a wasted crank and a destroyed top end AND SHE WAS STILL RUNNIN TITS Gotta love hondas
Coolness list by 90cr500guy
Bob's = 50/50
Cepek = cool
Solidbro = cool
Brit = loser
Stoffer = 1 up from Brit
MFDB = cool
Danny = ok
Last time i looked at my piston it didnt look like that and i have only run it quick around the block so i doubt my head and piston have damage like that.. Ill get it apart this next weekend with Danny and get stuff ordered that needs to be ordered
I'm gonna be out of town this weekend, leaving sat.
Maybe we could do it one evening this week, or friday afternoon. The funny thing is this weekend, I'm going to be splitting Andy's cases to install the newer 4th and 5th gears and start on his gen-2, and hopefully tonight Marshall will be bringing by the stuff for his gen-4! I'm a busy guy!
'09 kx450f 4-Poke
Gen-4 trail bike --SOLD--
Gen-3 badass trail/mx bike --SOLD--
Gen-1 built dunes bike --SOLD--
'05 klx110 --SOLD--
'95 pw80

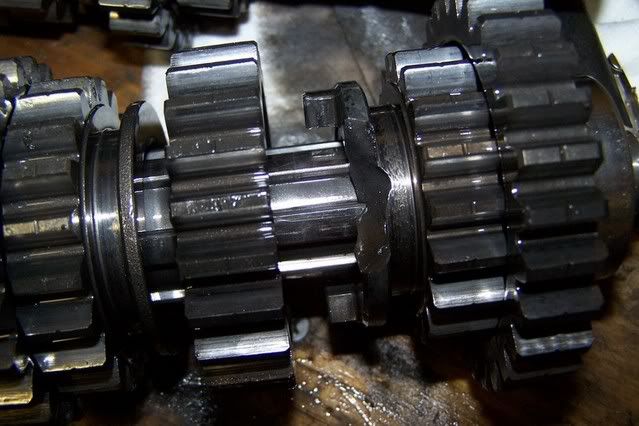

so danny took apart my motor this morning.. and 2 of the gears are all pitted up and chewed up.. however the meshing gears on the countershaft are pretty much untouched and brand new looking.. We kinda scratched our heads for a while and came to the conclusion.
A) the cases have been swapped
b) someone blew up a previous tranny in this thing
c) someone used old parts thinking they would be fine and apparently arent
So all new seals and bearings and im crossing my finger that Mike over at TT has the 2 gears i need in that spare box of parts he has so it wont cost me an arm leg and my first born.. Those 2 gears cost at or above 60 bucks a pop.. UGG..
yeah, the stator side case has the sticker, so we know it has been replaced and some of the gears have the tooth # writted on the side of them in sharpie.
