I started my Gen 2 conversion this weekend!!!

highdezman · Post by **highdezman** » April 27th, 2008, 10:24 pm

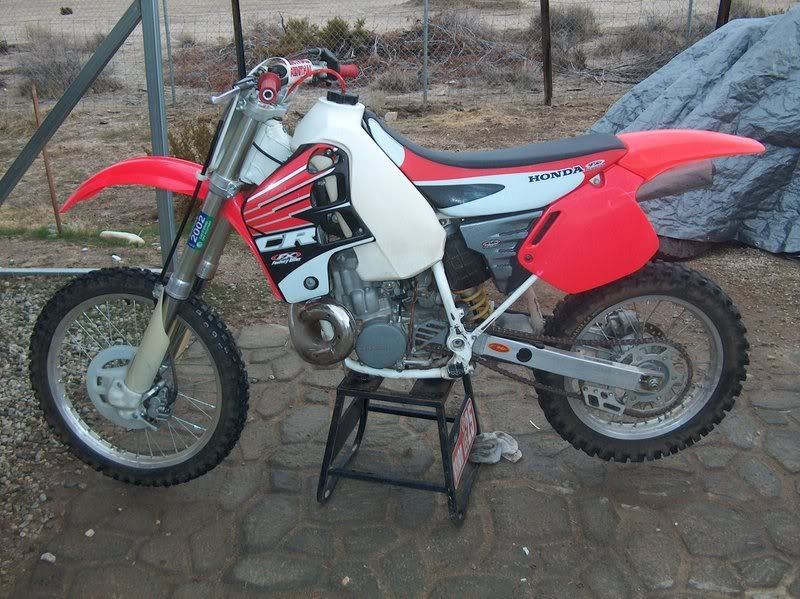

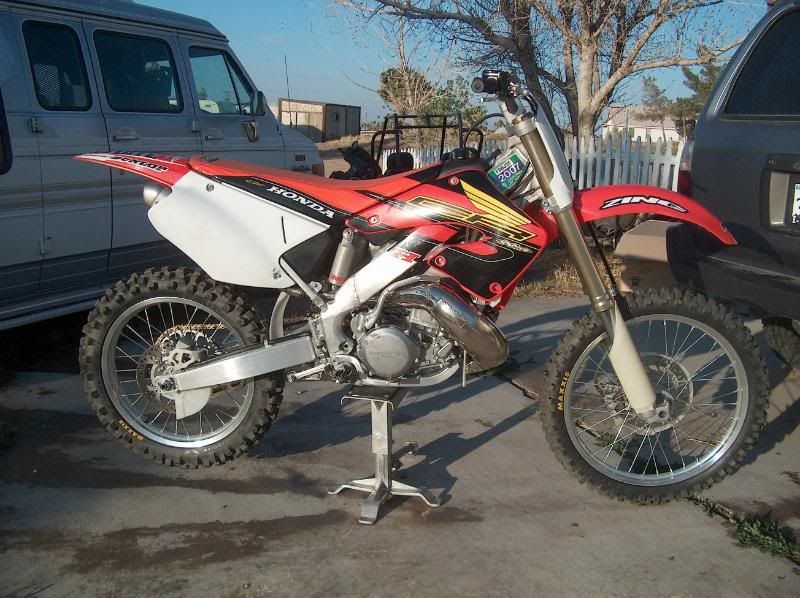

It's about time, I pulled both engines and started mock up. Ill have pics soon this is what im starting with, as soon as i figure out why my pc wont recognize my camera ill post my progress.

cr500 1997

cr250 2001

Skidmark · Post by **Skidmark** » April 27th, 2008, 11:58 pm

Cool....good luck and keep us posted!

"Skiddy"

pimp559 · Post by **pimp559** » April 28th, 2008, 12:29 pm

Are you selling the 250 pipe?

highdezman · Post by **highdezman** » April 28th, 2008, 9:47 pm

this weekend has been so fun i started tearing apart both bikes and started to mock up gen2 frame. removed front mounts and cut out Y. cut out fron mount area for 7/8 dowel for front mount. thoese are done and just need to be welded. engine alighnment doog with spacers and will pick up some round stock for coil mount just above cyl head just to the front. Im modifying Y to accomadate stock placement for radiators. I moved up the Y about 1" and installed solid rectangle stock for the down tubes to slide up into Y. Ill keep you posted.

pimp559 · Post by **pimp559** » April 29th, 2008, 8:32 am

pimp559 wrote:Are you selling the 250 pipe?

2weelz · Post by **2weelz** » April 29th, 2008, 9:39 am

Lookin good! I think I'll do the same with my '01.

highdezman · Post by **highdezman** » April 29th, 2008, 9:06 pm

Sorry i sold the pipe to help ofset the cost of buying the 500. I do have the silencer though. Not the best pic at this time. fmf silencer very clean, pm if interested ok? thanks

pimp559 · Post by **pimp559** » April 30th, 2008, 9:52 am

I got a silencer. I just picked up a 2000 and the PC is in pretty bad shape. I need a pipe to sell it with.

highdezman · Post by **highdezman** » May 10th, 2008, 9:11 am

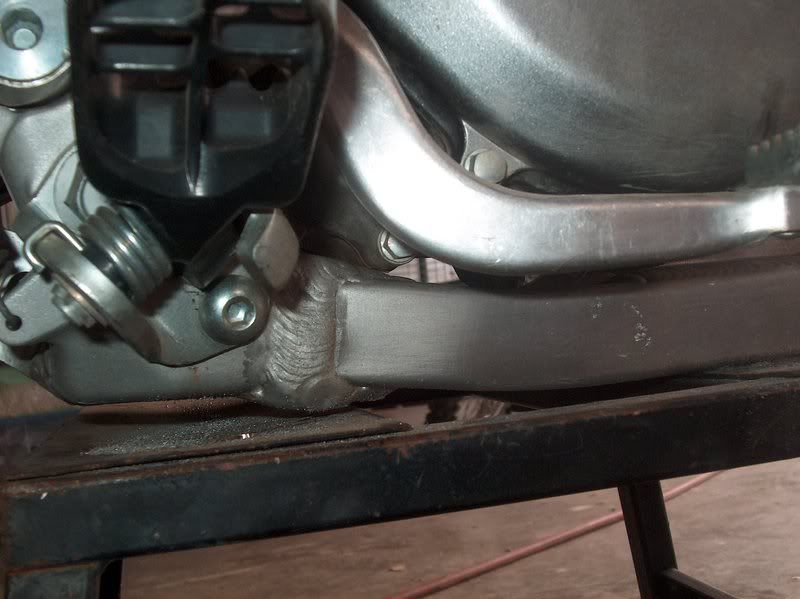

I got back from the welder yesterday and will post some pics later.

highdezman · Post by **highdezman** » May 16th, 2008, 9:51 pm

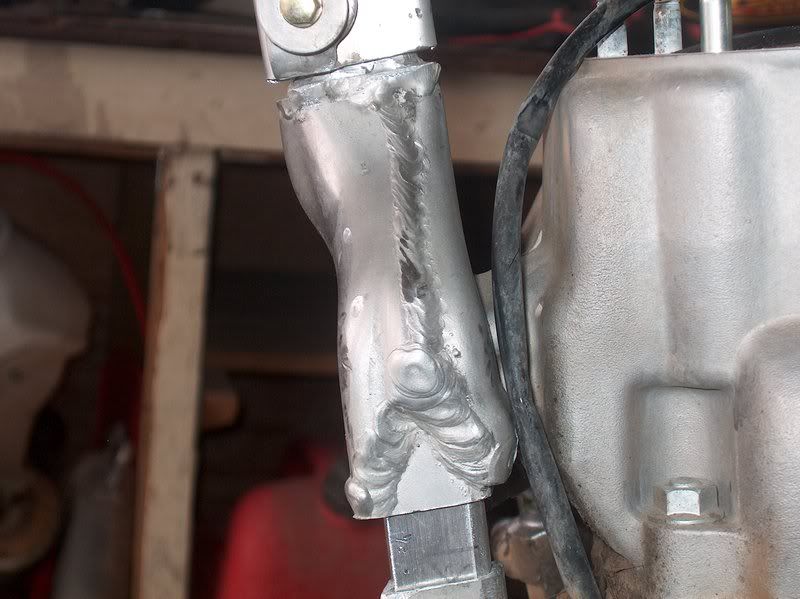

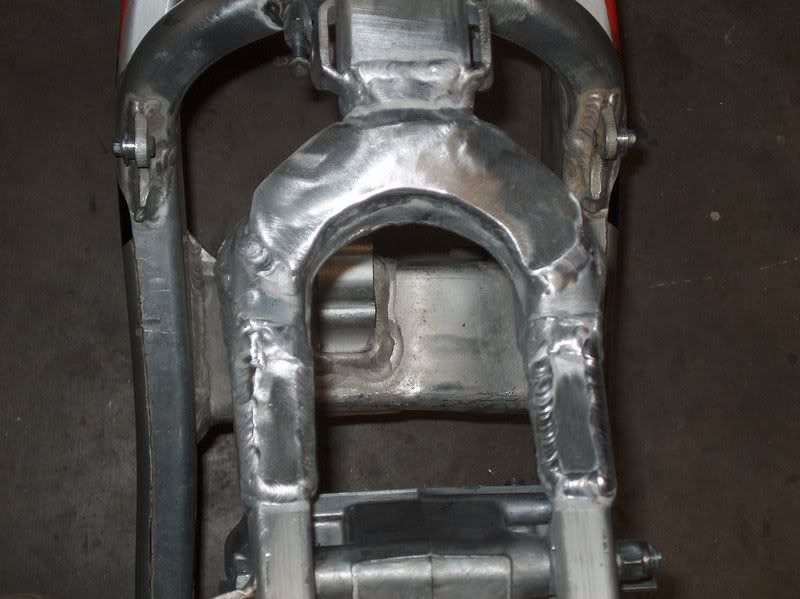

more done and more to come

britincali · Post by **britincali** » May 16th, 2008, 10:23 pm

That looks scarey

arleybeer40 · Post by **arleybeer40** » May 16th, 2008, 10:48 pm

somebodys got some clean up to do

dannygraves · Post by **dannygraves** » May 17th, 2008, 8:10 am

nice! a little mad max-ish on the welds... Clean 'em up and RIDE!

highdezman · Post by **highdezman** » May 17th, 2008, 11:57 am

I know they arent the best looking welds but i was there to see the first welds layed down and they looked real good than the welder filled in the low spots thats where i need to do some clean up.

highdezman · Post by **highdezman** » May 22nd, 2008, 10:55 pm

Im getting things cleaned up and the head stay is done, what do you guys recommend for gearing, im riding mainly mx tracks at int level? I was thinking of trying 14/49?

dannygraves · Post by **dannygraves** » May 23rd, 2008, 9:21 am

14/49 sounds good, its a pretty geood all around gearing. For MX only, you could probably go a little lower like 14/51 or 14/53.

highdezman · Post by **highdezman** » June 3rd, 2008, 8:17 pm

Were almost done I got the bike together complete with pics thru out the process and im just waiting for my suspension to get back, Im in the market for premix and trans oil. it's been along time since i ran a 2 stroke so any advice on brands, ratio's per 5gal and type of trans oil would be appreciated, i getting the pic's ready to post but i was wondering what size is best for viewing? I think my first were a tad too large. Thanks

dannygraves · Post by **dannygraves** » June 3rd, 2008, 8:55 pm

most run maxima 927 @ 32:1, pretty safe. I run a motorcycle clutch safe specific 10w40 in the trans.

kkvslayer · Post by **kkvslayer** » June 5th, 2008, 6:28 am

britincali wrote:That looks scarey

I concur

Thats why I'm reluctant to build one here in Gjoa Haven,thats the kind of welders I have to work with,but hey as long as theres good penetration

,

mmmmmmmmm Penetration,Just take the time to clean it up nice.

highdezman · Post by **highdezman** » June 16th, 2008, 9:38 pm

It's Done!!!!! I also posted here I hope you guys like? Thanks for all your help!
http://cr500riders.com/cgi/yabb/YaBB.pl ... 590049/1#1

highdezman · Post by **highdezman** » June 24th, 2008, 9:41 pm

I rode my bike this weekend and had no problems what so ever. I m amazed how well it runs. Its been a year since i have ridden and it felt so good yee haw.

teemtrubble · Post by **teemtrubble** » June 25th, 2008, 7:27 am

Congrats bro!

dannygraves · Post by **dannygraves** » June 25th, 2008, 8:55 am

very cool!

britincali · Post by **britincali** » June 25th, 2008, 9:00 am

Where in the hi-dez are you? We should hook up and go burn some fossil fuels

highdezman · Post by **highdezman** » June 25th, 2008, 11:26 am

I live in phelan and i would love to ride with ya, ill be at comp edge sunday. can you go?
