CR500 Engine Jig

Post by vito.a »

I have a like new CR500 engine jig.  We used this while building our CR500 conversion.  This jig was built and then the holes were drilled on a CNC machine for exact location.  You can use this jig to weld up your new 500 engine mounts and when you're done the bolts will slide right in with perfect alignment.

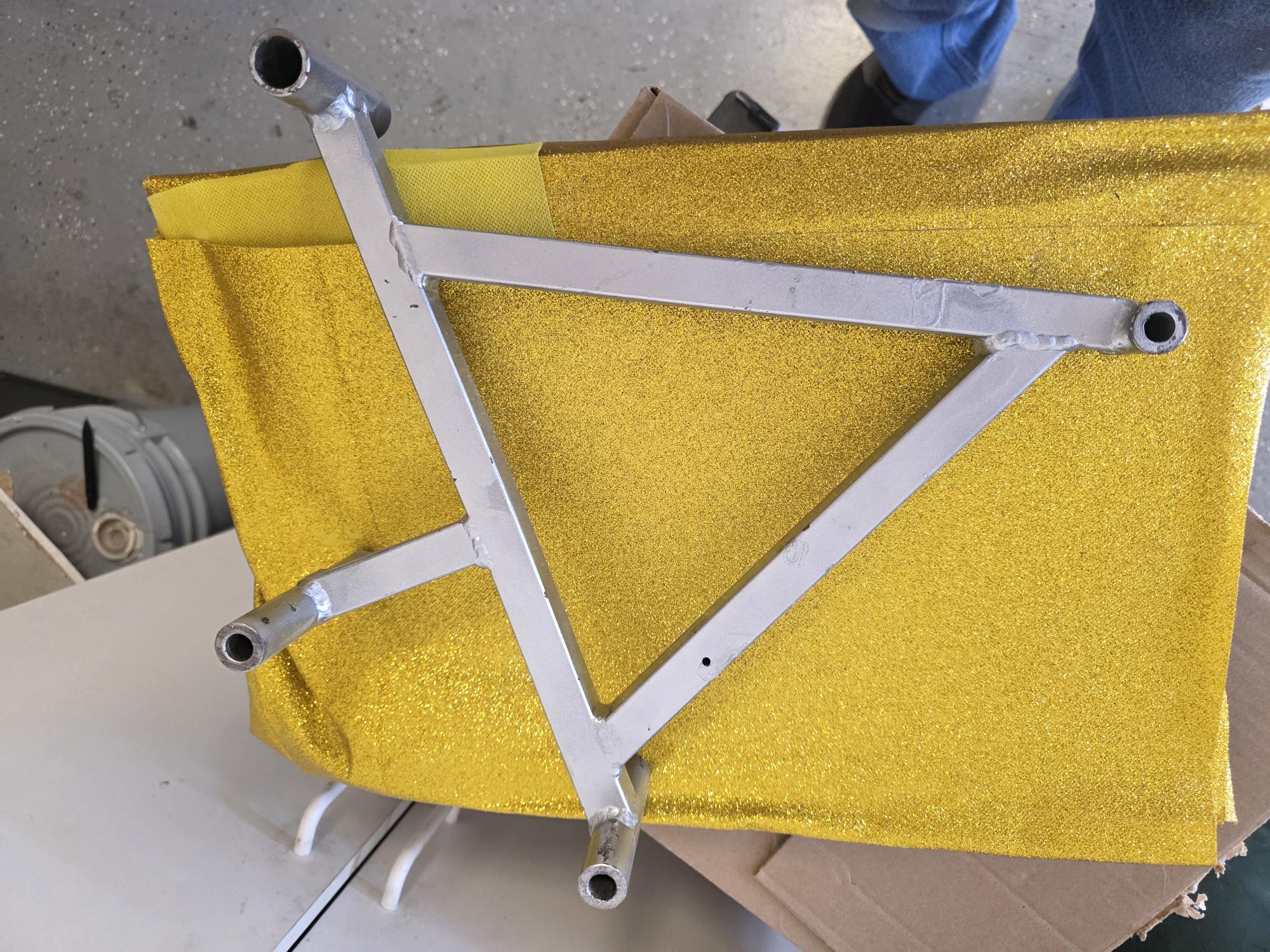

CR500 jig 2.jpg
CR500 jig 2.jpg (588.65 KiB) Viewed 67 times

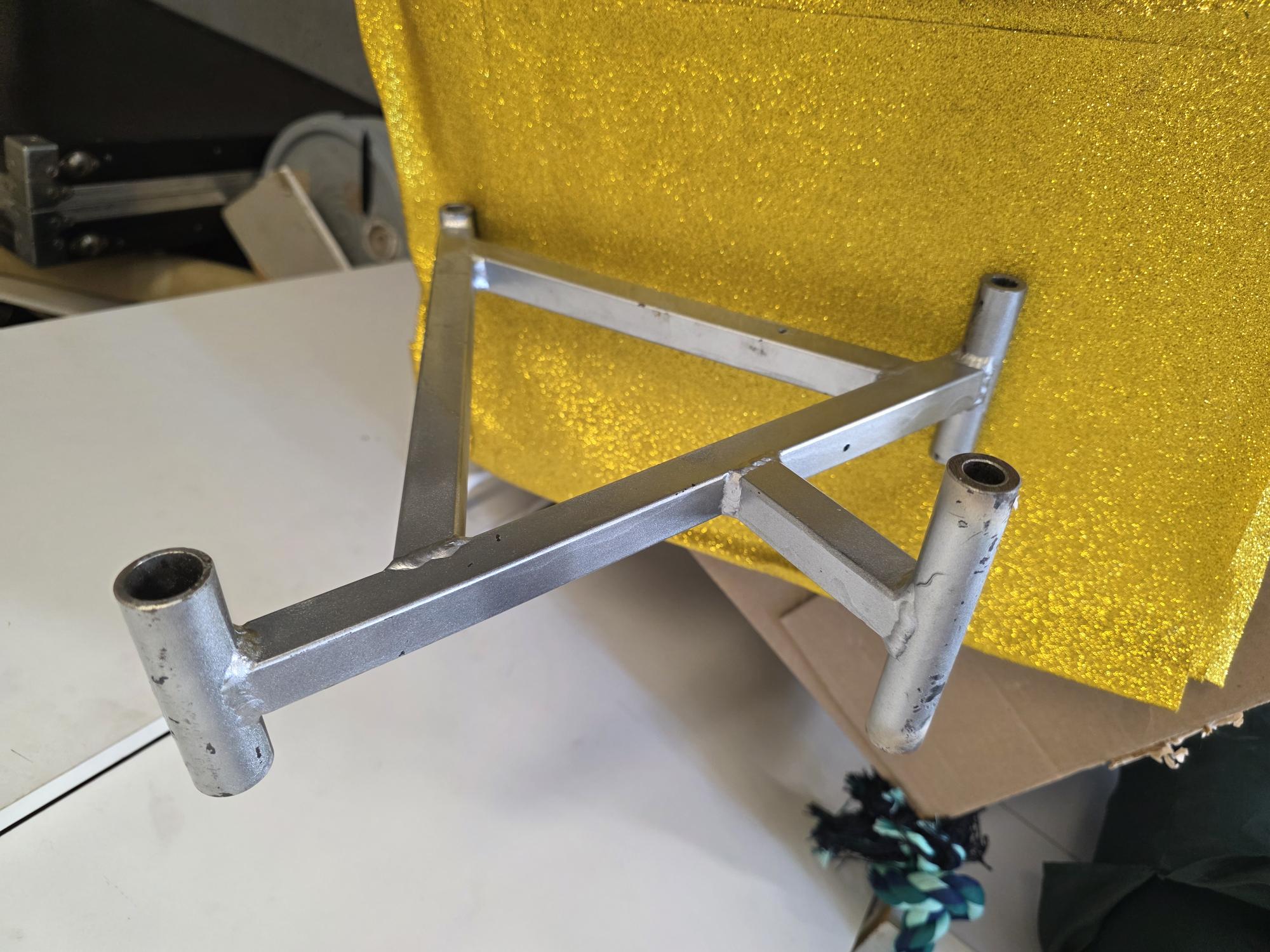

CR500 jig 1.jpg
CR500 jig 1.jpg (328.97 KiB) Viewed 67 times
