simple decompression cable setup

[jar944]

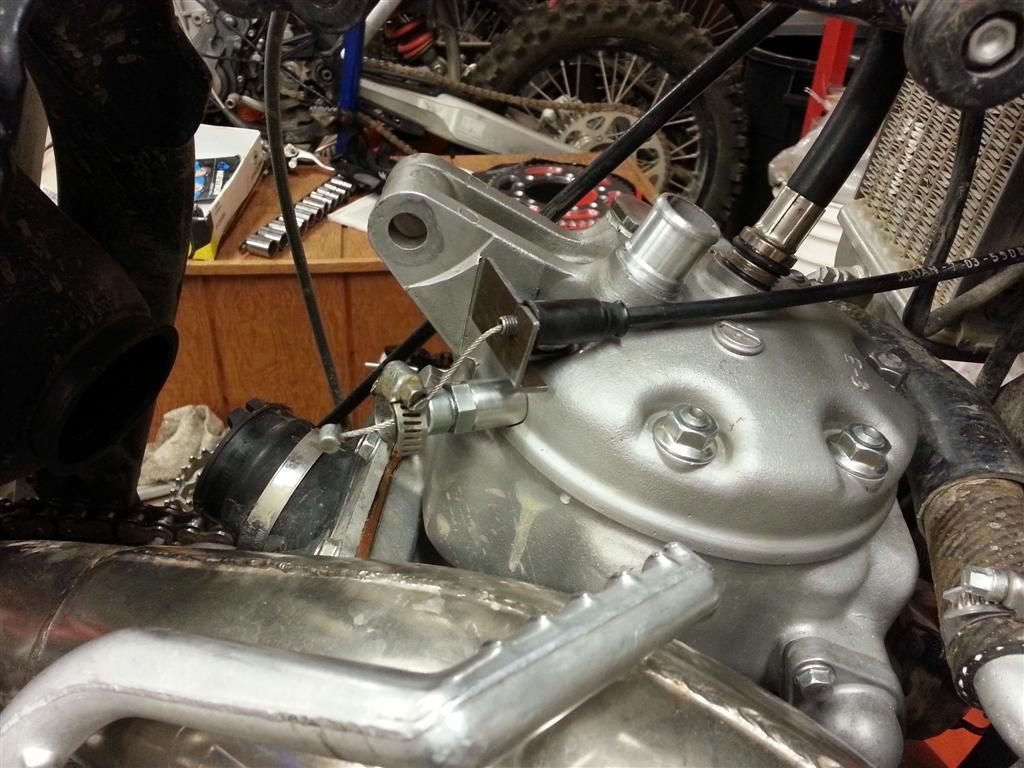

I used a stock KTM rfs decompression cable and lever (any hot start or decamp should work)

It's not good looking but it's functional. I need to machine the whole setup out of Al, but this was quick to make.

http://www.youtube.com/watch?v=WTBnlbxk ... e=youtu.be

[Kuma]

Always good to see all the different approaches to advance the old beast.
You maw want to angle the cable a bit, should put less stress on the decomp button.

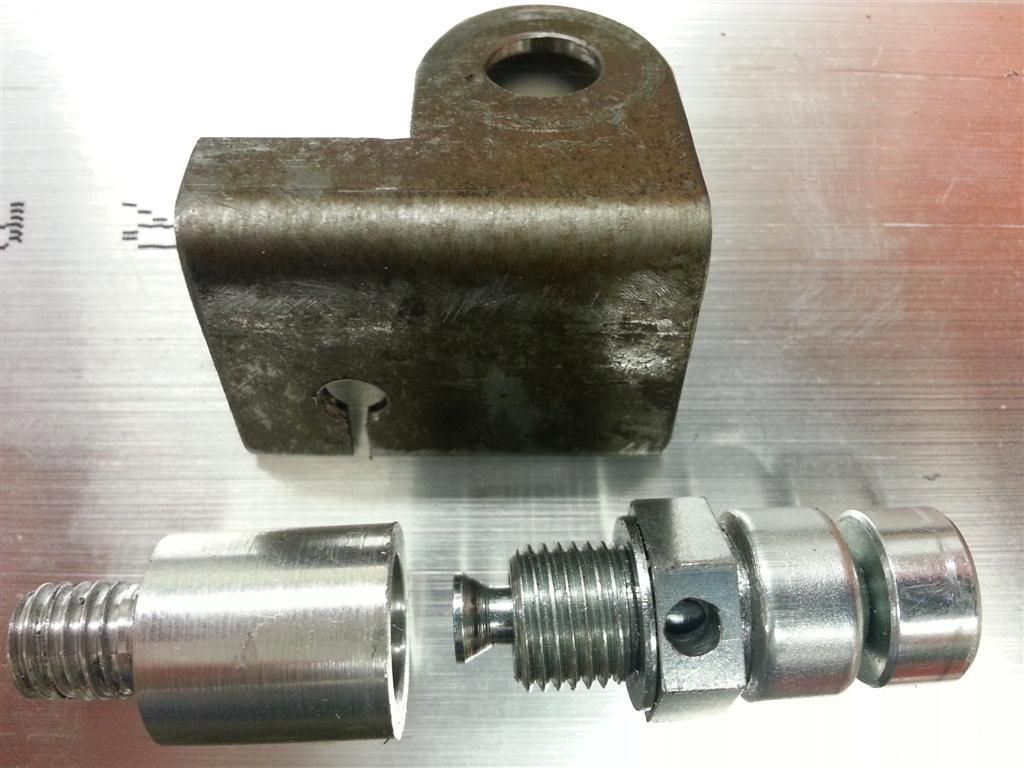

I like that you have made a simple adaptor for a no weld decomp system, are you using a copper washer or oring for the seal?

[jar944]

Always good to see all the different approaches to advance the old beast.
You maw want to angle the cable a bit, should put less stress on the decomp button.
I like that you have made a simple adaptor for a no weld decomp system, are you using a copper washer or oring for the seal?

The adapter is sealed to the head with blue loctite, though I have a copper washer here if I notice leakage.

I thought about the angle (and it would be simple when I remake the bracket in billet) however I noticed the extreme angle makes it harder to pull the decomp. I feel that it may be a good thing as it prevents a light touch / branches from accidentally pulling it.
