My TeemTrubble build frame #11

yota · Post by **yota** » July 11th, 2009, 12:20 pm

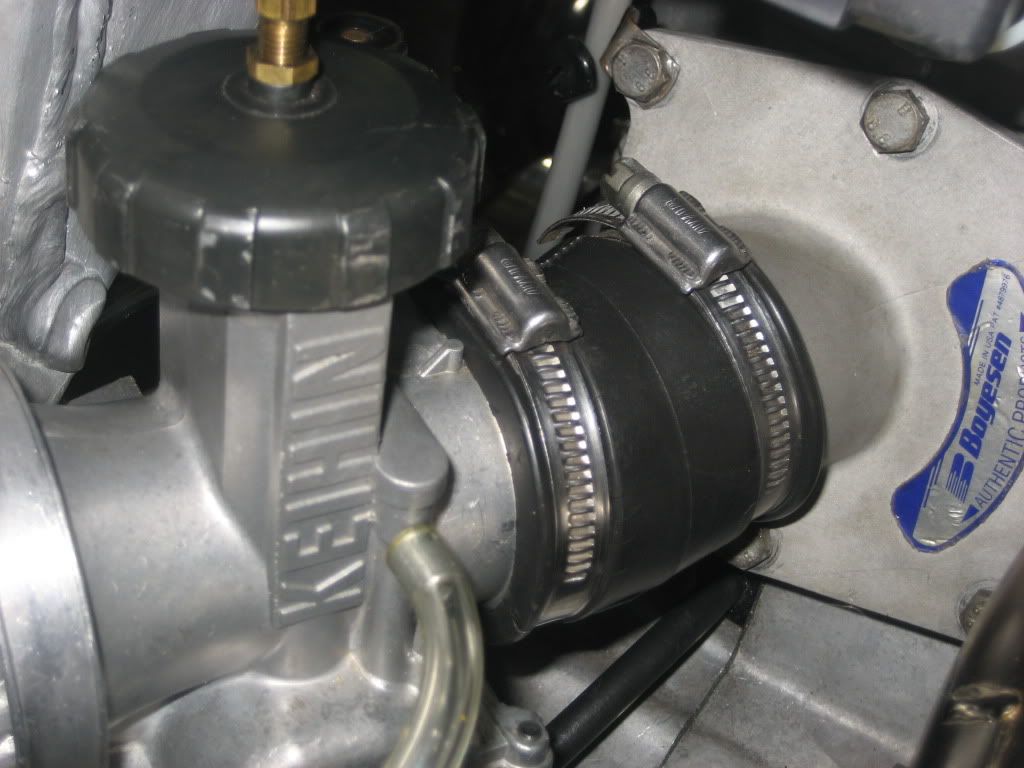

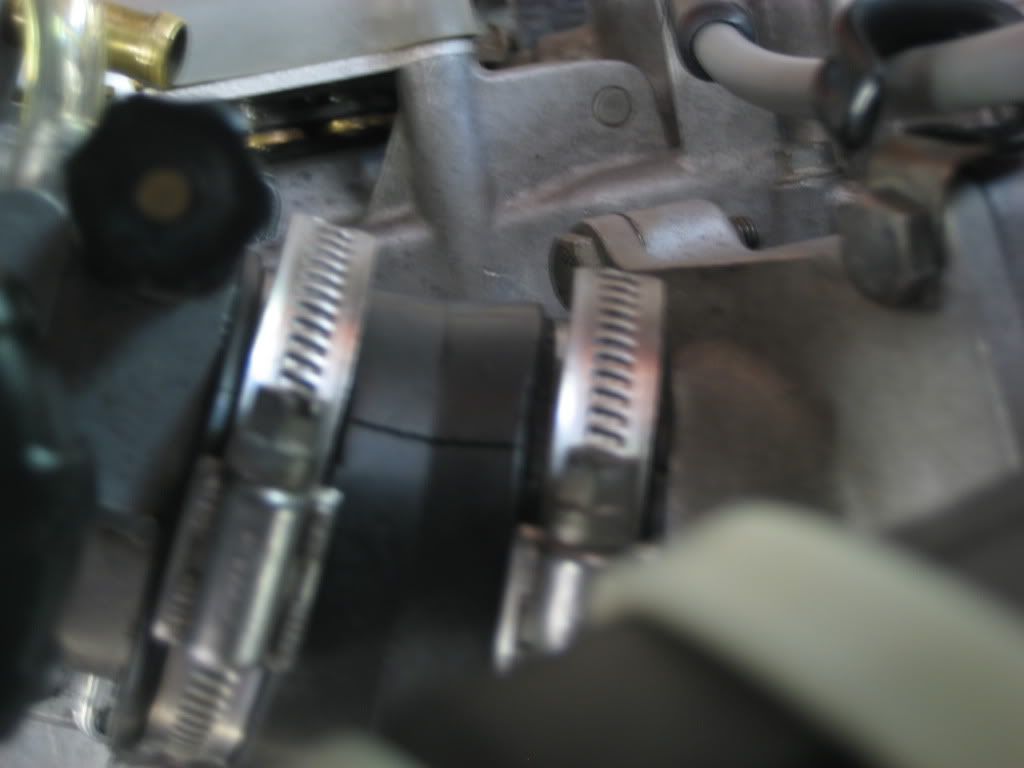

when I went to put the pipe on last night I decided to redo a few things better. one was the airboot/carb connection. mine has a rad valve and the airboot pushing on the shock makes the boot want to pull off of the carb. I stared at this for a while and thought the rubber manifold between the carb and reed block intake needs to be angled, not straight. a few months ago I took the Jikov carb off my CZ 400 and put on a 38 mikuni. The rubber boot I took off the CZ was perfect (bad pics sorry)

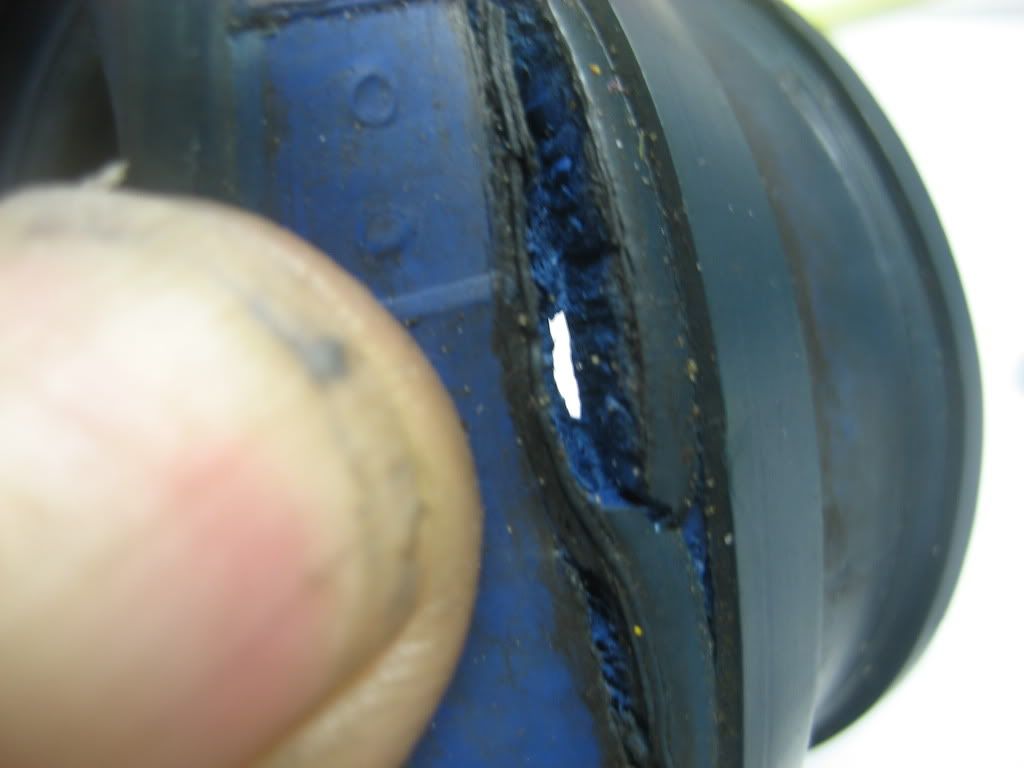

in the process of removing the stock CR 500 manifold I realized I had overlooked that it was rotted out (need better glasses I guess) good thing I decided to make this change or I would have been sucking in sand.

yota · Post by **yota** » July 11th, 2009, 12:23 pm

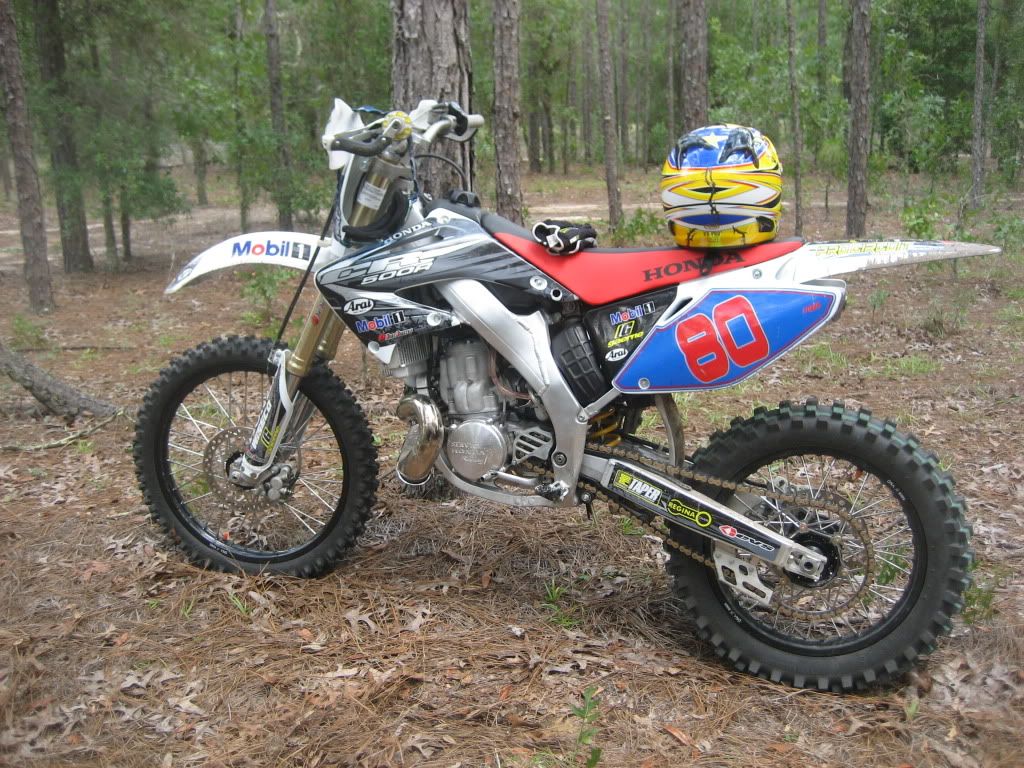

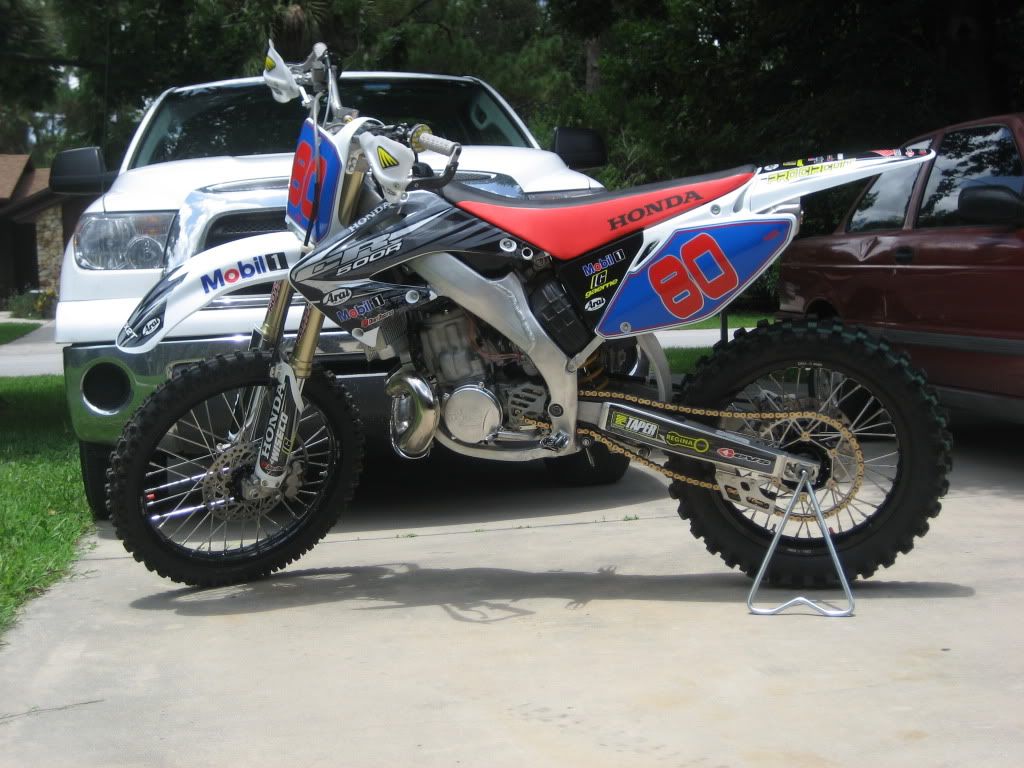

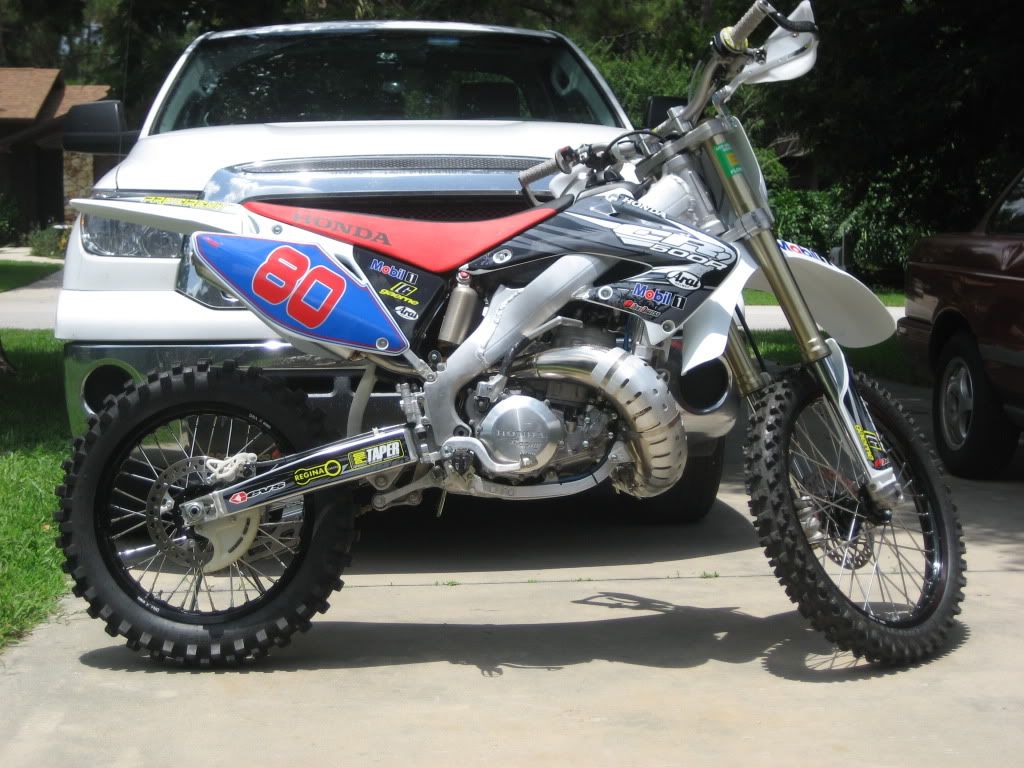

ok I hereby declare TTM frame #11 build as complete.
1994 CR500 power
2003 CR125 chassis
2006 CRF250X suspension
1976 CZ 400 intake manifold (:

Post by **AlisoBob** » July 11th, 2009, 12:29 pm

I'm not feelin' the pipe guard.....

Everything else is pretty sweet!!!!

yota · Post by **yota** » July 11th, 2009, 12:38 pm

thanks, I put CF guards on all my bikes but the one for the std 500 pipe doesn't fit these SH pipes. My friend with the SH LE has one and it fits like crap, actually looks worse than this believe it or not. all my riding is tight woods and I go for every log and wall of brush I can find so I have to do something or I'll have this sweet pipe looking like a pancake by the end of the day tomorow...

honda02 · Post by **honda02** » July 11th, 2009, 12:43 pm

Hey Yota have you tryed to clock you're kick starter forward 1 spine it will clear you'r frame better.

yota · Post by **yota** » July 11th, 2009, 12:48 pm

I will definitly do that, right now I don't want to take anything apart again.
going to Croom tomorrow, can't wait.

honda02 · Post by **honda02** » July 11th, 2009, 12:53 pm

Oh ya Nice bike just make sure you retighten every thing after the first ride I found things that gotten losse after the first real ride.

I using a PWK38 basicly the same Pipe and Reed setup Pilot 42, Needle DNG 3rd from the top 168 Main A/S 1 3/4 out.

Wheelie-Gene · Post by **Wheelie-Gene** » July 11th, 2009, 3:18 pm

Looks amazingly clean.

Turned out really nice. :drool:

Take it out, get it durty and have someone shoot some vids.

caseyracing222 · Post by **caseyracing222** » July 11th, 2009, 3:34 pm

Nice bike Yota

CR500R7 · Post by **CR500R7** » July 11th, 2009, 4:58 pm

You should be ashamed of yourself riding around on a bike like that.
If you give it to me now you could save yourself any future embarrassment and ridicule.

yota great job man.

That worked out absolutely amazing, SWEET X 5!
Like the man said go out and get that thing DIRTY!

ridin4fun · Post by **ridin4fun** » July 12th, 2009, 11:20 am

That is one fine ass ride, yota. Way back in the 80's, I had a gray seat cover custom-made by Ceet to match some graphics I put together (just a bunch of stickers back then). A seat cover with black on top and dark gray on the sides would be a sweet compliment to your graphics. Otherwise, a black SDG would look good, too. I've used standard, tall and step versions from SDG and never had an issue. Sweet bike.

yota · Post by **yota** » July 12th, 2009, 5:19 pm

"Like the man said go out and get that thing DIRTY!"

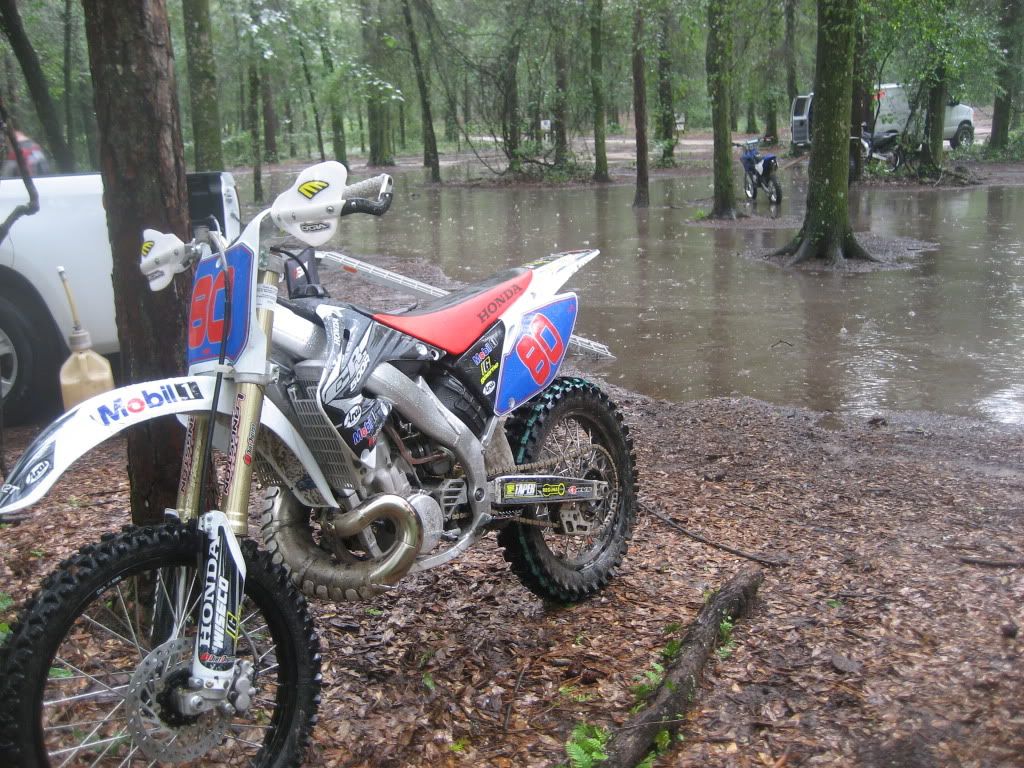

well a little dirt. rained like hell, this is our parking area, was completely dry 30 minutes earlier. Thats Dredge"s 500 in the background. he's a mod on the other site. we swapped bikes for a brief ride in the pouring rain.

yota · Post by **yota** » July 12th, 2009, 5:39 pm

btw, bike runs great, freaking power is just stupid. frame works great, handling is good but still sorting suspension and set up. was worth the wait indeed.

Exnav · Post by **Exnav** » July 12th, 2009, 5:48 pm

Is that the TT 20" front wheel option?

yota · Post by **yota** » July 12th, 2009, 6:04 pm

no, all I had mike do was the frame and supply exhaust and rads.

caseyracing222 · Post by **caseyracing222** » July 12th, 2009, 6:15 pm

yota wrote:all I had mike do was the frame and supply exhaust and rads.

and the build took this long

Exnav · Post by **Exnav** » July 12th, 2009, 6:58 pm

yota wrote:no, all I had mike do was the frame and supply exhaust and rads.

Knew that dude, but was just asking if it was a 20" front because it was similar looking to the pic Bob posted that I had seen before from Mike.

Sad that it has come to this..

Nice looking bike Yota.

27maverick · Post by **27maverick** » July 12th, 2009, 9:38 pm

he was supposed to ship my frame #13/radiator/pipes/ saturday, hummmmmm

27maverick · Post by **27maverick** » July 12th, 2009, 9:40 pm

oops make that #12 not #13

CR500R7 · Post by **CR500R7** » July 12th, 2009, 10:57 pm

I would not want the number 13 on my bike either.

Yota did you try to park in the river.

The bike looks fantastic dude, whats the blue POS in the background.
Quality is always worth the wait.
ENJOY IT!

4Z · Post by 4Z » July 13th, 2009, 6:23 am

VERY nice job Yota!!!!!!!!!! She is sexy!

I like the colors on your graphics. Very clean indeed.

Did you, by chance, pop the for caps off and make sure the tire doesn't hit the pipe?
My PC is a TTM special from PC. However, I had to move a spring tab myself, or let the tire move it.

yota · Post by **yota** » July 13th, 2009, 9:50 am

4Z wrote:VERY nice job Yota!!!!!!!!!! She is sexy! I like the colors on your graphics. Very clean indeed.

Did you, by chance, pop the for caps off and make sure the tire doesn't hit the pipe?
My PC is a TTM special from PC. However, I had to move a spring tab myself, or let the tire move it.

thanks. i didn't check to see if the forks hit, I assumed that pipe was made for that. The label on my pipe said "Pro Circuit CR500AF, Service Honda".

yota · Post by **yota** » July 13th, 2009, 10:59 am

yota wrote:no, its a 32 spoke rear.

oops, noticed yesterday it is a 36 spoke rear wheel.

teamdns · Post by **teamdns** » July 13th, 2009, 7:45 pm

4Z wrote:VERY nice job Yota!!!!!!!!!! She is sexy! I like the colors on your graphics. Very clean indeed.

Did you, by chance, pop the for caps off and make sure the tire doesn't hit the pipe?
My PC is a TTM special from PC. However, I had to move a spring tab myself, or let the tire move it.

i bottomed my front out hard a couple of times and there is nothing more than a very light haze of tire....not enough to dent the pipe and im running a 21

yota · Post by **yota** » July 27th, 2009, 5:02 am

got the old PJ dialed in this weekend, ended up with:

172 main
55 pilot (think a 52 would work better for my idle)
1368D needle with clip in 2nd leanest position
stock slide (6.5)

just above sea level, 96 degrees, 96% humidity

cylinder has been ported so this may not work for a stock one.
