2004 rebuild

W.M.F.J · Post by **W.M.F.J** » August 4th, 2009, 10:10 am

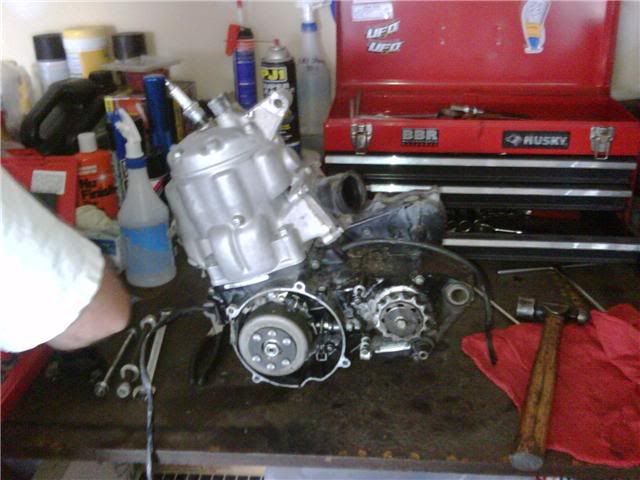

well I'm starting my 2004 500 AF rebuild. I'm going through the bottom and top end replacing all the bearings and seals sending the complete top end off to swainteck to have every thing ceramic coated then it will go to surf and turf racing to have the crank rebuilt trued and balanced. I'm going to have the case powder coated. here is a few pics Ill post more with progress.

CR500R7 · Post by **CR500R7** » August 4th, 2009, 10:36 pm

Was the camera on acid when the first photo was taken.

The background plays hell with my eyes.

thestuz · Post by **thestuz** » August 5th, 2009, 12:15 am

nice work,good to see your doin it properly.keep those photos comin

W.M.F.J · Post by **W.M.F.J** » August 5th, 2009, 8:03 am

CR500R7 wrote:
Was the camera on acid when the first photo was taken.
The background plays hell with my eyes.

no it was a cell phone camera Ill use a better camera from here on out

CR500R7 · Post by **CR500R7** » August 6th, 2009, 12:50 am

Does the background in the first photo look FREAKY to anyone else.
Maybe I need glasses.

Friggen hope not.

W.M.F.J · Post by **W.M.F.J** » August 20th, 2009, 7:05 pm

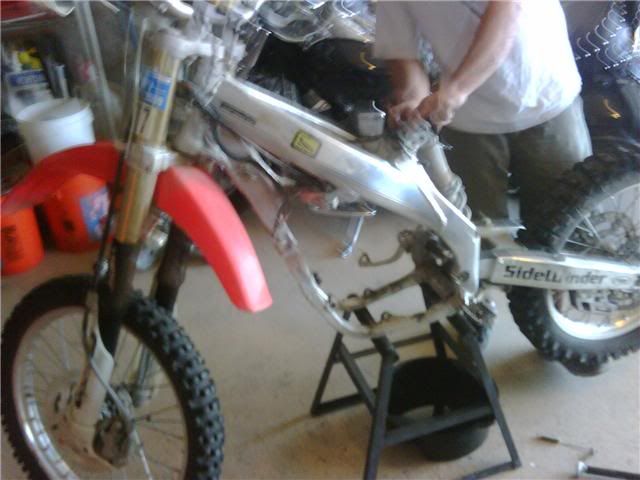

well I haven't had much progress on my bike because the frame has a crack

so I took it to a local fab shop to get fixed the engine is totally apart and getting ready to get sent off to get board and coated. so the proses is going slower than I had hoped. I have been riding my 250 and its like riding a pedal bike

but its still better than nothing

Exnav · Post by **Exnav** » August 20th, 2009, 7:09 pm

Where was the crack?

W.M.F.J · Post by **W.M.F.J** » August 20th, 2009, 7:33 pm

at the top of the y where the pipe comes out

xtremeslide · Post by **xtremeslide** » August 21st, 2009, 5:49 am

CR500R7 wrote:
Was the camera on acid when the first photo was taken.
The background plays hell with my eyes.

I don't know why you say that i can see it clear

CR500R7 · Post by **CR500R7** » August 21st, 2009, 5:18 pm

Man I hope that isn't you xtremeslide, you would have trouble finding goggles.

xtremeslide · Post by **xtremeslide** » August 21st, 2009, 7:08 pm

Maybe is my face looking that

CR500R7 · Post by **CR500R7** » August 21st, 2009, 9:46 pm

NICE I feel much better now.

W.M.F.J · Post by **W.M.F.J** » September 13th, 2009, 8:40 pm

well my rebuild is going slower than expected but I got the cylinder piston and the heat back from swain tech coatings and now its off for a balance and a stroke

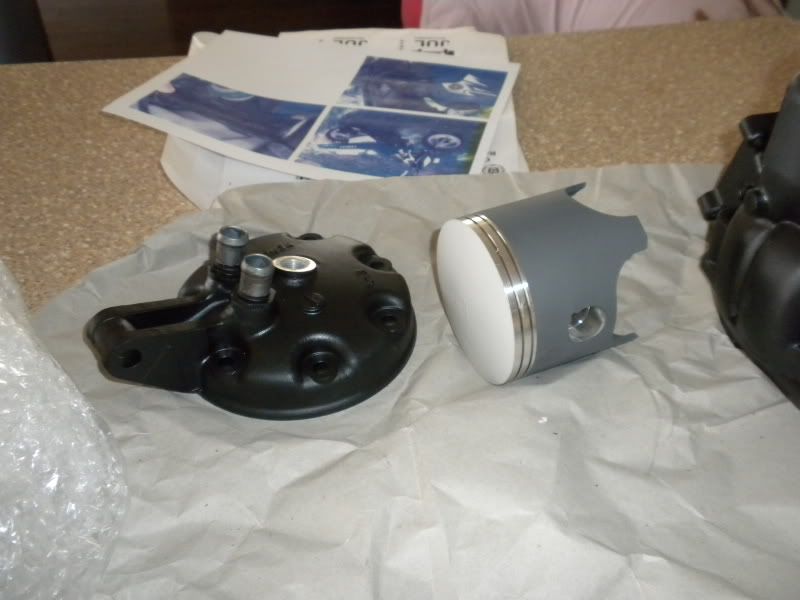

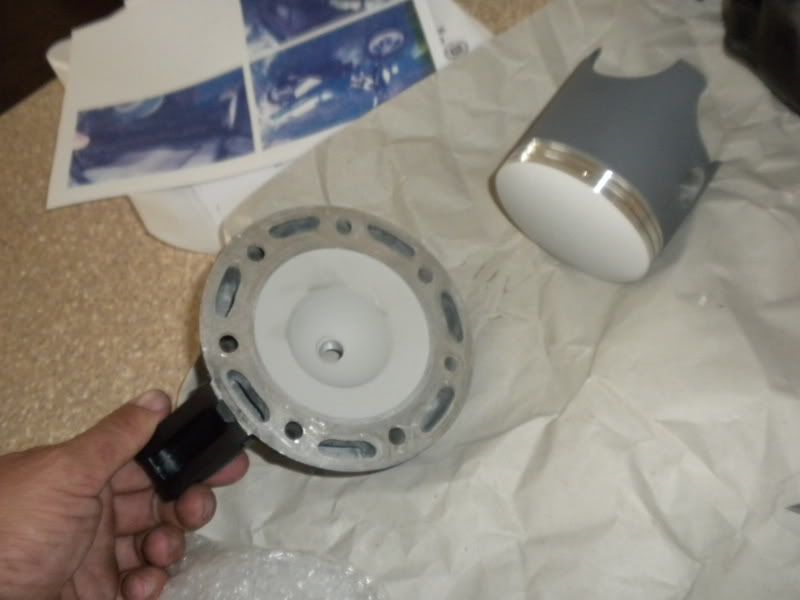

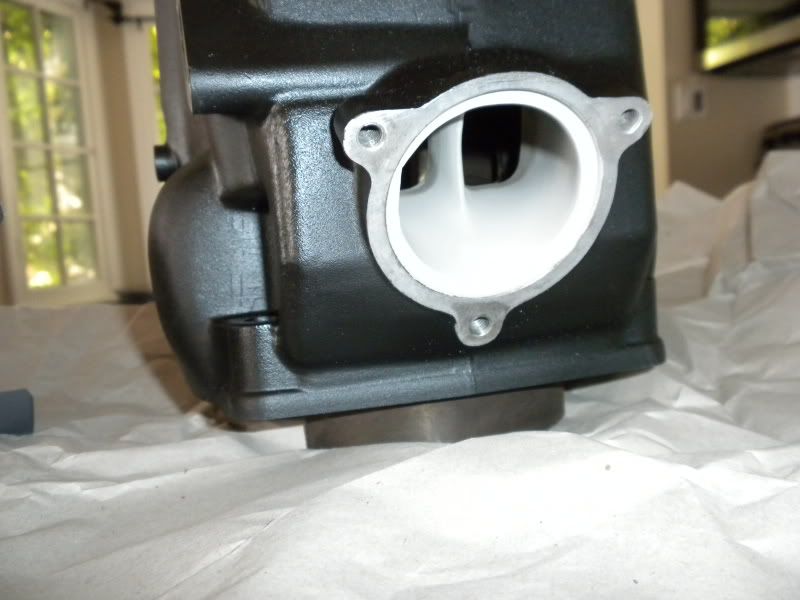

here are some pics the ports are coated and the out side of the cylinder and the head inside and out and the piston all together three different coatings in three different spots

Disturbed · Post by **Disturbed** » September 14th, 2009, 5:54 am
