AlisoBob's finally swapin' out his Top-End

Post by **AlisoBob** » October 22nd, 2010, 10:36 am

Got a big ol' box from Winkler, Manitoba yesterday... I got baseball all weekend, but come Monday I'll tear into this thing and get er' done.

So far, everything looks fantastic. I'll get some photos and comments up soon. Thank you Roosty.

dubious01 · Post by **dubious01** » October 22nd, 2010, 11:02 am

well that was a cock tease post!

eyesky2002 · Post by **eyesky2002** » October 22nd, 2010, 11:17 am

dubious01 wrote:well that was a cock tease post!

Going more with the topless house party pics he "posted"

fastkart · Post by **fastkart** » October 22nd, 2010, 2:47 pm

Can't wait to hear how the new Loomis stuff works!

2strokeforever · Post by **2strokeforever** » October 22nd, 2010, 2:49 pm

Can't wait to hear how the new Loomis stuff works!

from what i heard roosty did it
im pretty excited to hear how it goes
hurry up

fastkart · Post by **fastkart** » October 22nd, 2010, 2:52 pm

I heard roosty did it too, but that the box had a Loomis sticker on it. Never trust a Canuck...

http://www.youtube.com/user/500bigbore · Post by **Roostius_Maximus** » October 22nd, 2010, 3:06 pm

pretty sure there was some messin with ppl in the chatroom going on lastnight, kinda like the night before when a report was given about the condition of the parts while it was stil in the hands of the usps

http://www.youtube.com/user/500bigbore · Post by **Roostius_Maximus** » October 22nd, 2010, 3:09 pm

the only chance of a "loomis" sticker beeing found on it is if these guys were helping....

100hp honda · Post by **100hp honda** » October 22nd, 2010, 3:32 pm

should be a positive experience. certainly cant be worse than what you had previously

fastkart · Post by **fastkart** » October 22nd, 2010, 3:33 pm

Bob? Messing around? No way...

2strokeforever · Post by **2strokeforever** » October 22nd, 2010, 4:22 pm

roosty showed me some pics, they looked nice, maybe if you ask he will put them up again

Post by **AlisoBob** » October 22nd, 2010, 7:15 pm

This stuff is 110% Canadian. They use Moosehead in the honing tank.... I can still smell it on the jug.....

I'll post up some photos after the Rangers get done kicking all that high priced Yankee ass.....

"SOLID Bro!!" · Post by **"SOLID Bro!!"** » October 22nd, 2010, 10:06 pm

The shits from Canadia ?

Post by **AlisoBob** » October 22nd, 2010, 10:22 pm

So heres how my stuff arrived.... packed very well. No way to get damaged

Heres looking down the throat. So many times I see some backyard porter grind away here. Hello? The reed cage fills all this area.

Roosty left it alone, and just worked on the boost ports.

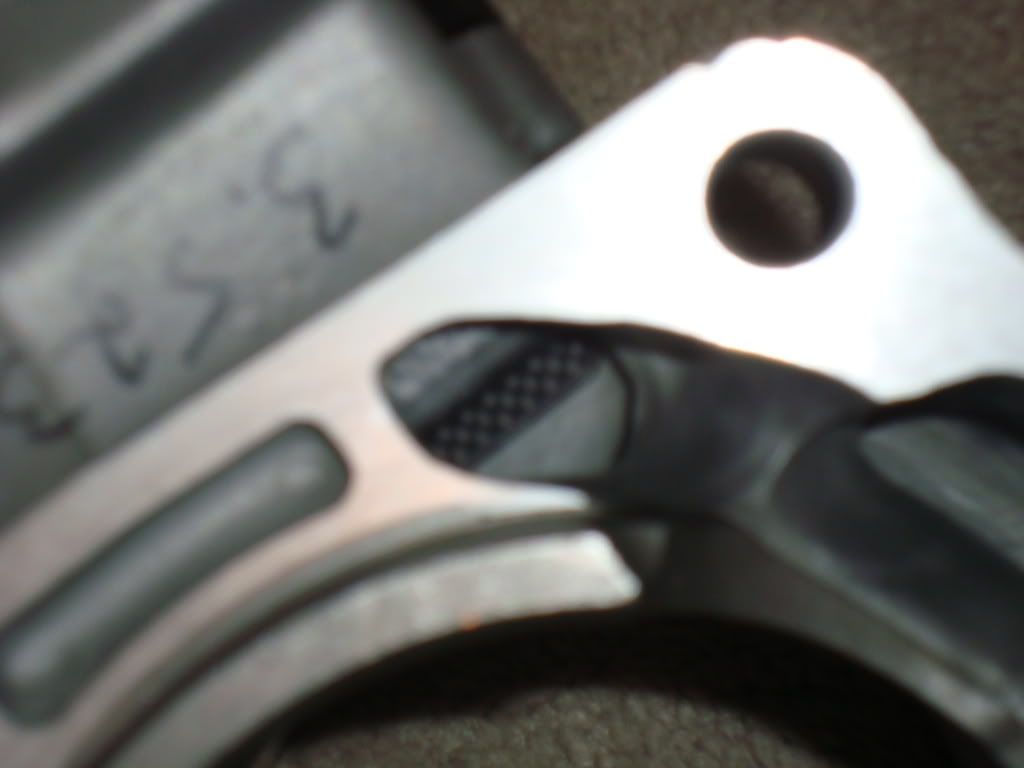

Heres how the VForceIII cage fits the jug, Adam feels it extendes too far into the throat.... so he makes a nice spacer to pull it back a bit.

Like so.....

Heres the spacer, along with the intake boot. Roosty ported the boot too so there is no "lip" where my 41mm PWK slips in, and its port matched to the VForce reed block.

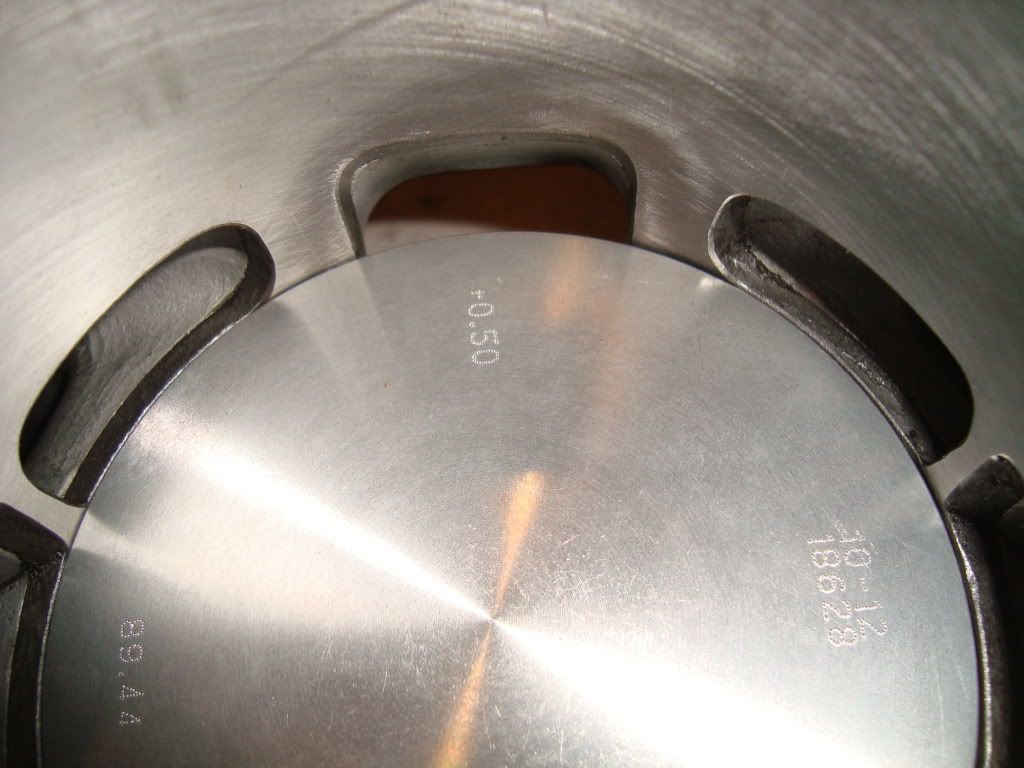

The port timing is spot on... Everything opens and closes together.

The exhaust port has a nice radius in the floor and is blended well from the rectangle port into the round outlet.

Roosty decked the base nicely. No blown base gaskets here!!!

Heres the deck, notice its untouched. Adam said its fine...I like that. Not everything needs to be dicked with, and if its fine... run it!! Juan Mendoza at Flow Technologies used to tell me how fustrating it was to have a customer call and say he missed a spot when he ported somebodies head. He would explain he didnt miss a spot, he left a certian area raw because it didnt need any material removed to flow correctly. Some customers didnt understand. It got to the point that he would just port everything 100% ( even if it hurt the flow) just to keep some customers happy..... Thanks for doing it right Roosty!

Heres a shot of the cylinder finish. I asked Adam to plateau hone for me. This involves bringing the cylinder to size, and stopping short of the final size, and then using some ultra fine stones to finish th jug.A plateau finish is one that is very smooth and has lots of bearing area to support the rings, but also has decent crosshatch depth to retain oil and provide good ring lubrication as well. Whats missing is the metal that was folded over during the boring and rough honing operations.

A plateau finish essentially duplicates a broken-in cylinder. In the old days, cylinders were honed to size, and the rings did the final finishing of the bore surface. But this required a lot of break-in time and shortened the life of the rings... with what Adam provided for me, my bore is round, sized correctly, and will stay that way AFTER break in... as the folded over material has already been removed.....

Lastly , heres the head. Adam cut some off to get the chamber shallower, then cut a extra bevel in the chamber to get the compression ratio back to stock... and then he put a mirror finish cut on the mating surface. I guess I wont need "Copper Coat" with this one, eh Roosty? This is what he does for "pump gas" set ups.

And there it is. I couldnt be more happy with everything. Its exactly what I wanted for the kind of riding I do. Adam has really wild setups for serious HP applications like Hillclimbing and Dune only machines if you have that kind of application.
When I get the time, I'll shoot some photos of the install, and what my old top end looks like after an extended time on the bike.

Thanks again Adam, you done good.

100hp honda · Post by **100hp honda** » October 22nd, 2010, 10:38 pm

nice work

TYSTYX · Post by **TYSTYX** » October 22nd, 2010, 10:40 pm

Nice !!!

sabreguy · Post by **sabreguy** » October 22nd, 2010, 10:47 pm

Looks good

Post by **AlisoBob** » October 22nd, 2010, 10:59 pm

sabreguy wrote:Looks good

Looks better than good..... Looks good x491

2strokeforever · Post by **2strokeforever** » October 22nd, 2010, 11:33 pm

how much did it cost?
and did he do any of his case work

http://www.youtube.com/user/500bigbore · Post by **Roostius_Maximus** » October 23rd, 2010, 6:48 am

Bob and I go back and forth on alot of parts, bike related and non, I always need stuff from Cali and he needs not so much from canada

"arrangements" were made

No case work was done, the engine is in bobs bike and wasnt to be removed incase a rida came up. I did what i feel is the most the cylinder can have done and stil be good for the long rides. Using gas is one thing, making peaky hard to find power for trails is another, this is neither but i expect a ride report to reflect Bobs opinion.

You might have noticed no epoxy in the rears, i do other things to favor other ports, this works better. As you'd expect there are parts of the cylinder that physically cant be seen or recognized with the camera that get work aswell.

The head is an R casting, every other head has a narrower squish. This is modified to work like the older heads, BETTER.

.005" was removed from the base, guys will tell you .020 is the number to chase, it completely depends on purpose. With the cometic base gasket used bobs cylinder is .010" lower than stock, it does not run the piston off the exhasut port at tdc, and can possibly add some torque to the engine.

vforce had it right with the vf2 if we're talking length. the vf3 is back to matching every other reed manufacturer, i expect this is becasue of the other aplications its used for, I'm very dissapointed in those boys.

i'm not going to say that everones cylinder will look identical either, there are things i do differently for different applications, some very drastic.

When a customer is going to build something for added performance theres a duty they have to making sure they know how to get the potential out of what they are already using, and then apply the same effort to the new setup.
Bobs engine has been together for years, last i heard the smithsonian was calling to get it for one of their displays.
Either way, he knows how to tune it and whats going to hurt it, not saying other people are not capable, plenty if not hopefully all the members of this site are in the same class.
I'm just puting it out there that this portwork, or anyone elses isnt likely a solution to fixing a clapped out bike thats hard to start, stalls constantly, fouls plugs or has needed 4 pistons in the last year.

Thanks for the review Bob

sabreguy · Post by **sabreguy** » October 23rd, 2010, 7:10 am

What would be the price on this if you and Bob didn't have "arrangements"

rsss396 · Post by **rsss396** » October 23rd, 2010, 8:04 am

very clean work Adam!

100hp honda · Post by **100hp honda** » October 23rd, 2010, 9:20 am

double check the vforce3. had to modify the intake on mine to make them fit better. maybe its a personal thing

. mototassinari said it was normal for the flappers to be smashed down when inserted in the intake tract....... seen alot of other motors and it just didnt seem right to me.

http://www.youtube.com/user/500bigbore · Post by **Roostius_Maximus** » October 23rd, 2010, 9:51 am

2strokeforever · Post by **2strokeforever** » October 23rd, 2010, 3:52 pm

the twirp porting is the one with 8ft lbs over stock?
but if i did that id need to get the crank lightened and balanced too...
well i better start saving up
has anyone lightened a crank before?
