CR250 ignition for the 500 question (pic)
CR250 ignition for the 500 question (pic)

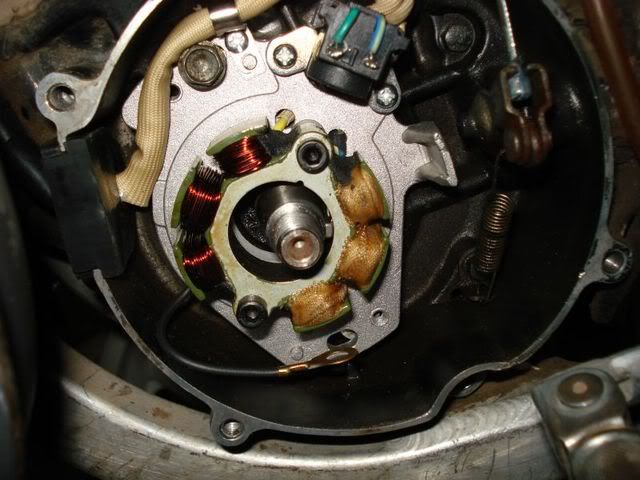

So, this might be a retarded question but the CR250 ignition (stator) I am putting on my bike has a ground wire. Is it supposed to run to the stator plate mounting bolt? Will it be ok if I do that? Just wanted to make sure since the 500 stator doesnt have one on it.
Say hallo to my little friend, Mr. CR 500.
- britincali
- Posts: 8207
- Joined: May 31st, 2007, 7:10 pm
- Location: Barstow, CA
- britincali
- Posts: 8207
- Joined: May 31st, 2007, 7:10 pm
- Location: Barstow, CA
-
- Posts: 444
- Joined: February 12th, 2008, 6:19 am
- dannygraves
- Posts: 8020
- Joined: June 1st, 2007, 2:03 pm
- Location: Las Vegas, NV
I'm running a 250 cdi on mine and all I can say is HOLY CRAP
I thought it would only help up top, but down low it advanced much more and retarded more up top, so the mid is about the same, down low... well you guys saw my fender after my first run with it on... and up top, I noticed a slight improvement. I thought about the 125 one, but the revs where that retards would be way out of the cr500 range anyway.
I thought it would only help up top, but down low it advanced much more and retarded more up top, so the mid is about the same, down low... well you guys saw my fender after my first run with it on... and up top, I noticed a slight improvement. I thought about the 125 one, but the revs where that retards would be way out of the cr500 range anyway.
'09 kx450f 4-Poke
Gen-4 trail bike --SOLD--
Gen-3 badass trail/mx bike --SOLD--
Gen-1 built dunes bike --SOLD--
'05 klx110 --SOLD--
'95 pw80
Gen-4 trail bike --SOLD--
Gen-3 badass trail/mx bike --SOLD--
Gen-1 built dunes bike --SOLD--
'05 klx110 --SOLD--
'95 pw80
-
- Posts: 444
- Joined: February 12th, 2008, 6:19 am
some years you can plug in the CDI and go from what I understand. The 125 is probably suited better for a new pipe made for top end. The Cr 500 especially the newer ones 1990 or 91 - 2001 are designed to retard upfront . the motor is really detuned.fastkart wrote:If I wanted to try the 250 ignition, I would need the entire setup correct? Not just the stator?
IMO best to not bit off more then you can chew. Get your bike finnished ride it a while, get to really know it, the last mod you want to make is ignitions off other models, you can burn holes in the piston pretty quick if you don't have a good feel for how it is reacting to a ignition mod.who else is running thi? is this a better setup that the 500 cdi? what is involded in the swap.
-
- Posts: 444
- Joined: February 12th, 2008, 6:19 am
I burned a hole in a piston from running one size to hot on a plug and there was really no warning until it quit.ou812 wrote:IMO best to not bit off more then you can chew. Get your bike finnished ride it a while, get to really know it, the last mod you want to make is ignitions off other models, you can burn holes in the piston pretty quick if you don't have a good feel for how it is reacting to a ignition mod.who else is running thi? is this a better setup that the 500 cdi? what is involded in the swap.
- britincali
- Posts: 8207
- Joined: May 31st, 2007, 7:10 pm
- Location: Barstow, CA
Slow old Fart wrote:I burned a hole in a piston from running one size to hot on a plug and there was really no warning until it quit.
The plug heat range was not what burned your piston, you must have been lean also.
Coolness list by 90cr500guy
Bob's = 50/50
Cepek = cool
Solidbro = cool
Brit = loser
Stoffer = 1 up from Brit
MFDB = cool
Danny = ok
Bob's = 50/50
Cepek = cool
Solidbro = cool
Brit = loser
Stoffer = 1 up from Brit
MFDB = cool
Danny = ok
- dannygraves
- Posts: 8020
- Joined: June 1st, 2007, 2:03 pm
- Location: Las Vegas, NV
Couldn't have said it better myself...I made sure my bike was running good before I started this swap. I got everything...the flywheel, stator and CDI. This is all from the same year range too, the 89-92 CR250.ou812 wrote:IMO best to not bit off more then you can chew. Get your bike finnished ride it a while, get to really know it, the last mod you want to make is ignitions off other models, you can burn holes in the piston pretty quick if you don't have a good feel for how it is reacting to a ignition mod.who else is running thi? is this a better setup that the 500 cdi? what is involded in the swap.
I happened to get lucky and they are all from a 1990. The wire colors are a little different so I have been trying to make sure I get everything lined up right before I try to fire her again. I also am putting all the wiring in for it to be street legal so it may take me a while. especially since I have broken a connector or 2 that I now need to fix.
Although I like what I hear about the increased performance, I am doing this as an upgrade for the lighting capabilities. That way I didnt have to buy the stock stator, just the lighting one.
by the way...I also think that diff. ignitions affect how hot your engine runs because it makes the engine run differently ( higher revs and diff power ranges) Makes sense to me anyways
Say hallo to my little friend, Mr. CR 500.
- dannygraves
- Posts: 8020
- Joined: June 1st, 2007, 2:03 pm
- Location: Las Vegas, NV
people totally forget about timing curves, timing can be the single largest non evasive performance upgrade on a naturally aspirated motor. I am very pleased with the '88 cr250 cdi I installed. Oh, so you guys know, even though the '86 stator coild were only '86 for the 500s, they were '86-'88 for the 250 and '86-'89 for the 125.
'09 kx450f 4-Poke
Gen-4 trail bike --SOLD--
Gen-3 badass trail/mx bike --SOLD--
Gen-1 built dunes bike --SOLD--
'05 klx110 --SOLD--
'95 pw80
Gen-4 trail bike --SOLD--
Gen-3 badass trail/mx bike --SOLD--
Gen-1 built dunes bike --SOLD--
'05 klx110 --SOLD--
'95 pw80
- Roostius_Maximus
- Site Admin
- Posts: 4641
- Joined: November 16th, 2007, 3:24 pm
- Location: Mt Nebo, Manitoba, Canada
- Contact:
you're using the 500 flywheel from an '86 on that ignition? anyone tried using a different flywheel?dannygraves wrote:people totally forget about timing curves, timing can be the single largest non evasive performance upgrade on a naturally aspirated motor. I am very pleased with the '88 cr250 cdi I installed. Oh, so you guys know, even though the '86 stator coild were only '86 for the 500s, they were '86-'88 for the 250 and '86-'89 for the 125.
http://www.youtube.com/user/500bigbore
My CR500 Tech Reference... http://sdrv.ms/1a0CIiz
MRE Components... http://sdrv.ms/1bs2zhd
My CR500 Tech Reference... http://sdrv.ms/1a0CIiz
MRE Components... http://sdrv.ms/1bs2zhd
- dannygraves
- Posts: 8020
- Joined: June 1st, 2007, 2:03 pm
- Location: Las Vegas, NV
yup, 500 flywheel.Roostius_Maximus wrote:you're using the 500 flywheel from an '86 on that ignition? anyone tried using a different flywheel?dannygraves wrote:people totally forget about timing curves, timing can be the single largest non evasive performance upgrade on a naturally aspirated motor. I am very pleased with the '88 cr250 cdi I installed. Oh, so you guys know, even though the '86 stator coild were only '86 for the 500s, they were '86-'88 for the 250 and '86-'89 for the 125.
'09 kx450f 4-Poke
Gen-4 trail bike --SOLD--
Gen-3 badass trail/mx bike --SOLD--
Gen-1 built dunes bike --SOLD--
'05 klx110 --SOLD--
'95 pw80
Gen-4 trail bike --SOLD--
Gen-3 badass trail/mx bike --SOLD--
Gen-1 built dunes bike --SOLD--
'05 klx110 --SOLD--
'95 pw80
-
- Posts: 120
- Joined: September 12th, 2007, 9:24 am
Danny, after I read this thread yesterday I went and looked to see if my Dyna 4 curve 2001 CR 250 CDI box would plug in with no other mods (I have this on my TRX 250r) and I it's a totally different plug. Now I understand how you did it using a older style 250 CDI box. Are the late 80's ignition digital? I know that is one advantage to the newer years they became digital and have hotter spark. You have to buy stator,coil,flywheel though to run the new stuff. I have curve grafts for the 2001 ignition that came with my Dyna box (can't buy these anymore) but I wonder what the curve looks like for 88?
If I could figure out how to post, I would put these up
If I could figure out how to post, I would put these up
- dannygraves
- Posts: 8020
- Joined: June 1st, 2007, 2:03 pm
- Location: Las Vegas, NV
the '88 was still analog and basically all I had to change was to a '87+ coil and the one connector was a little different. I hear the digi ('97+) is the way to go though. you can use a higher wattage lighting coil and they had all sorts of new features with the digis to make more traction and create less wheel spin.
'09 kx450f 4-Poke
Gen-4 trail bike --SOLD--
Gen-3 badass trail/mx bike --SOLD--
Gen-1 built dunes bike --SOLD--
'05 klx110 --SOLD--
'95 pw80
Gen-4 trail bike --SOLD--
Gen-3 badass trail/mx bike --SOLD--
Gen-1 built dunes bike --SOLD--
'05 klx110 --SOLD--
'95 pw80
Here is the lighting ignitions available from moose...
http://mooseracing.com/pdf/ignition.pdf
97-99 CR250 only 35W
04-08 is 75W.
I went with the 89-92 with 80W. I still need to get female bullet connectors to finish it up and try it out. I think I am gonna make sure it has spark before I put it all together to find out no worky.
http://mooseracing.com/pdf/ignition.pdf
97-99 CR250 only 35W
04-08 is 75W.
I went with the 89-92 with 80W. I still need to get female bullet connectors to finish it up and try it out. I think I am gonna make sure it has spark before I put it all together to find out no worky.
Say hallo to my little friend, Mr. CR 500.
-
- Posts: 120
- Joined: September 12th, 2007, 9:24 am
Did the 02 and newer CR 250's have the power jet carb? If so, I would not buy this ignition nor any years that had this feature. I know that 01 did not and looking at curves has a better over all curve than the years that had the powerjet carb. You take the CR 500 ignition off including the flywheel, and use the 250 stuff inculding the 250 flywheel. I don't know what the weight diff is 250 vs 500 flywheel but looking at them it's going to be pretty insignificant compared to the bottom end response you will get with the advanced timing down low. I have a feeling the curve on 90-01 CR 500's is a bit retarded at first for starting, then probably pretty flat at some point in the rpm's accross the board. The TRX 250r timing curve is at a flat 21 degrees accross the entire curve unlike the CR 250 it retards at a pretty low rpm for starting, then spikes up at a pretty high advance curve for bottom end, then starts to really retard in the upper midrange to top end for overrev. Just looking at the stator, it should just bolt right in. Use the 250 flywheel as well. I know on the TRX this alone picked up 3 HP on top, a overall broader power band and chripser throttle response. Probably have a bit easier starting as well.
I thought they started using that power jet carb on the 97's or 98'sLOVEMYCR500 wrote:Did the 02 and newer CR 250's have the power jet carb? If so, I would not buy this ignition nor any years that had this feature. I know that 01 did not and looking at curves has a better over all curve than the years that had the powerjet carb.
