2003, Gen 3 A/F. Billy / Ported & Polished Joint Effort

Ported&Polished · Post by **Ported&Polished** » February 12th, 2008, 9:44 pm

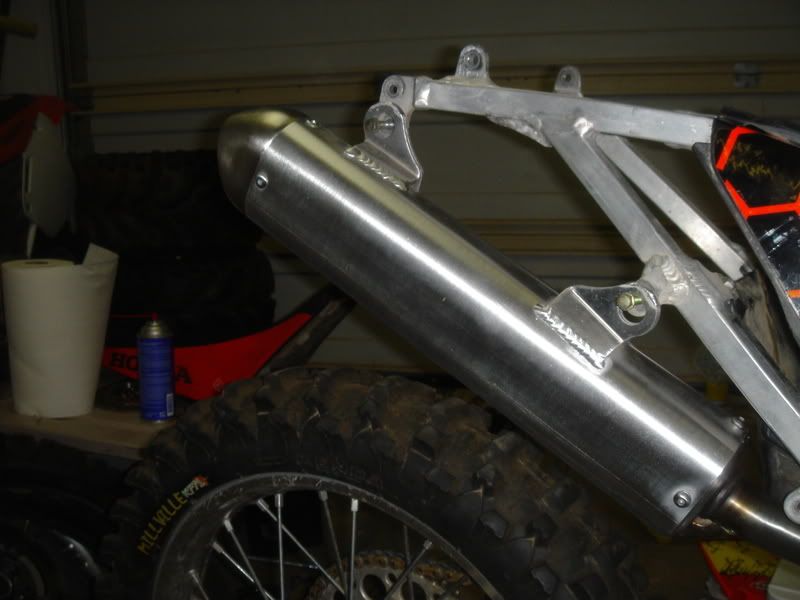

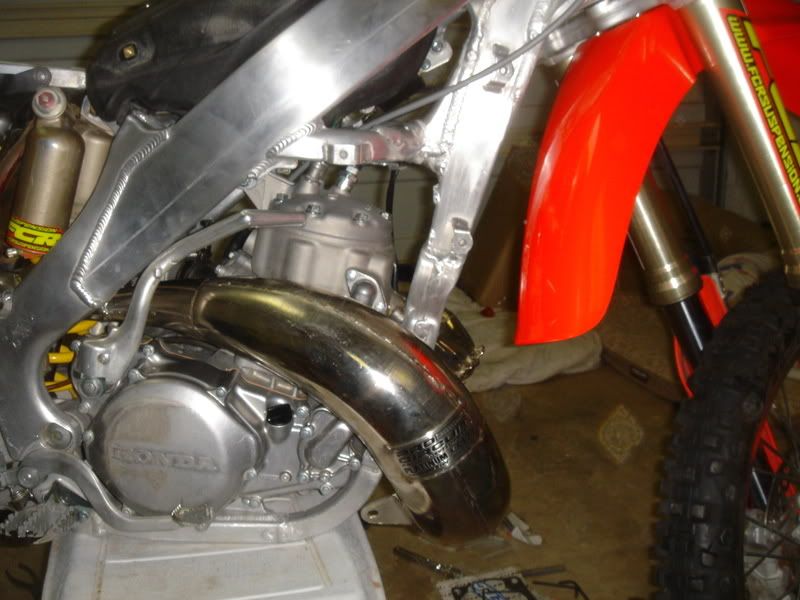

I promised Bob I'd take some shots of the SH 500AF exhaust mounted. I'm not ready to put it on just yet, but I slipped both the pipe and silencer on there to see how well the mounts line up. They line up perfectly!

Ported&Polished · Post by **Ported&Polished** » February 12th, 2008, 9:47 pm

Oh and I got the airbox and carb mounted today, it was a tight fit, but after a few minutes of messing with it, bam, it fit and is totally usable.

Freemer · Post by **Freemer** » February 13th, 2008, 12:59 am

Great Job Bro - we can run steelies this next trip they are cool.

Hope you can get the rads modded so you can run the AF also.

Tony - Please bring some firewood ! LOL

iggys-amsoil · Post by **iggys-amsoil** » February 13th, 2008, 5:49 pm

Where are the rubbers for the silencer? Its going to be a dif story when there found.

The trick with the airbox is unbolt it from the subframe. Tighten the boot to the carb and the rest is cake.

Ported&Polished · Post by **Ported&Polished** » February 13th, 2008, 6:46 pm

It came with new Honda rubbers, we'll see how it goes. The airbox is done, cake.

Ported&Polished · February 13th, 2008, 10:17 pm

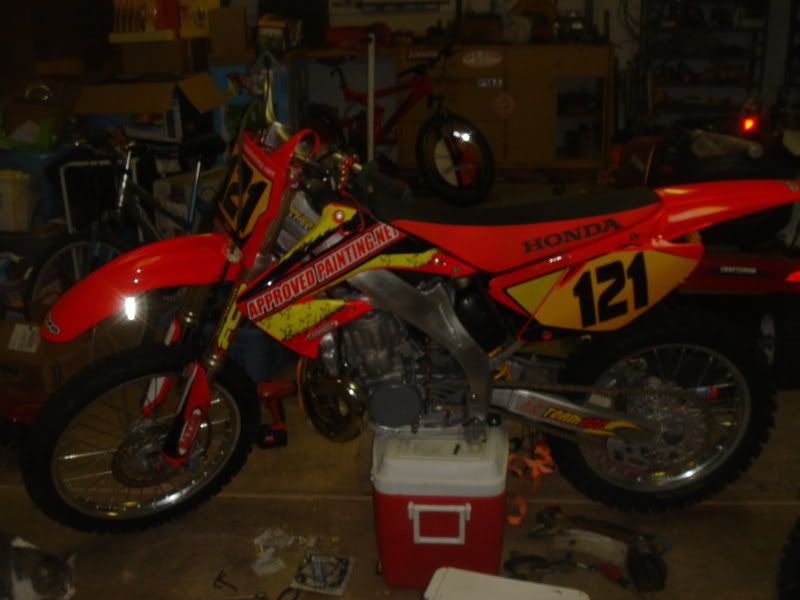

It's done! Sort of.

I have to get the radiators modded, and the front tire needs air.

Post by **AlisoBob** » February 14th, 2008, 4:56 am

Loosen your chain...

Great job Terence!

Ported&Polished · Post by **Ported&Polished** » February 14th, 2008, 6:48 am

That chain isn't tight, and as soon as the tire is on the ground it will be perfect. I still have to adjust the wheel and tighten the axle though so don't get your panties in a bunch Bobarino.

sabreguy · Post by **sabreguy** » February 14th, 2008, 7:00 am

Must have sucked having to move the bike every time you needed a fresh beer!

Ported&Polished · Post by **Ported&Polished** » February 14th, 2008, 7:05 am

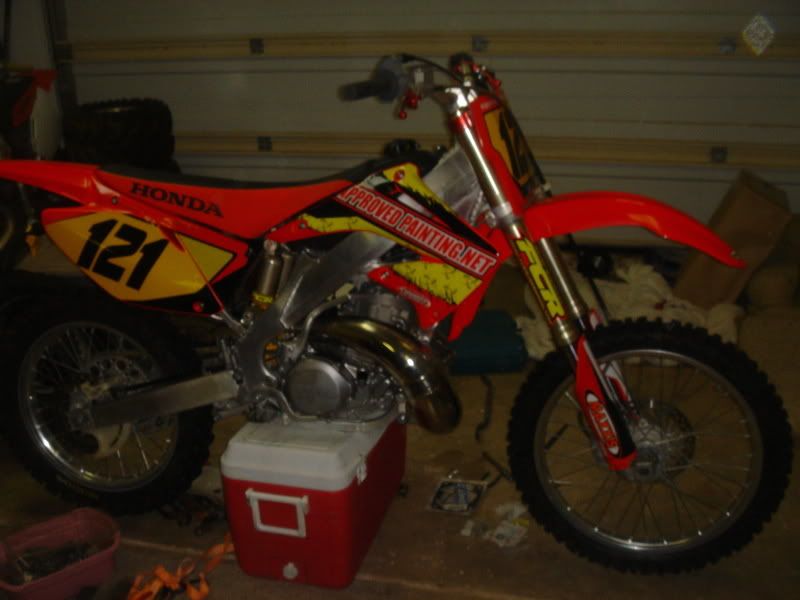

If you look closely at the last pic you will see the seat/beer cooler at the bottom. And in the same pic you will my helper in the left corner, couldn't have done it without her.

Exnav · Post by **Exnav** » February 14th, 2008, 8:22 am

Great job duder

ShanMan · Post by **ShanMan** » February 14th, 2008, 8:28 am

Nice job man....glad to see it looking like a bike again!!! Congrats.

iggys-amsoil · Post by **iggys-amsoil** » February 14th, 2008, 10:19 pm

Nice one.

Looks like the kicker doesn't rub the frame either.

chachi243 · Post by **chachi243** » February 15th, 2008, 7:49 am

Looks great!

ShanMan · Post by **ShanMan** » February 15th, 2008, 9:42 am

iggys-amsoil wrote:Nice one.

Looks like the kicker doesn't rub the frame either.

it definitely touches the frame with the backlash in the kicker.

mxracr121 · Post by **mxracr121** » February 15th, 2008, 5:57 pm

DDDDAAAAMMMMNNNNN. Looks good! What, you didn't like the yellow seat? LOL, the seat was actually left over from the old graphics kit.

Ported&Polished · Post by **Ported&Polished** » February 15th, 2008, 9:02 pm

The yellow seat and the other stuff I didn't use may get used after I see how this stuff works for me. BTW Billy, do the forks need oil? I checked and the motor didn't have any, so I thought I better ask. Can you think of anything I might need to do to the suspension at all? Or is it all fresh and ready to rock and roll? I am sending the radiators to Mylers tomarrow, they said they have done a cr500 radiator conversion before, and they quoted me a really good price!

mxracr121 · Post by **mxracr121** » February 15th, 2008, 9:44 pm

Nope, forks are fresh, never even rode with them since they were done. Didn't think about the engine, I can't remember if I drained the oil or Shannon did. The shock would be the only thing I couldn't be certain about, but I was told that it was great, complete and ready to bolt on.

ShanMan · Post by **ShanMan** » February 16th, 2008, 11:38 am

I drained the engine of oil and any residual coolant FYI. I did lube the cylinder with fresh Super M but I think you already redid the cylinder/piston right?

100hp honda · Post by **100hp honda** » February 23rd, 2008, 10:57 am

sweet bike dude

23x · Post by **23x** » February 24th, 2008, 4:12 am

The trick with the airbox is unbolt it from the subframe. Tighten the boot to the carb and the rest is cake.

The single most valuable hint of this forum!

Freemer · Post by **Freemer** » February 24th, 2008, 11:58 pm

When ya parting out that old steelie - I need a mill that I can kick start with my house slippers on.

I look forward to spanking your alumitub on comp hill.

Get 'er ready for april ride.

GOT GAS? I sure need some

lewisclan · Post by **lewisclan** » February 25th, 2008, 7:02 am

nice job bro

teemtrubble · Post by **teemtrubble** » February 25th, 2008, 9:45 am

Nice job bro!

Ported&Polished · February 26th, 2008, 10:49 pm

Alright, I got the radiators back today. I just mounted them, and they fit perfect now. I had Myler's fix them up for me. They straightened them, modified them, and fixed a couple spots that were welded poorly. I still need to run a couple hoses and fill them, then I can start the bike. The bottom of the right radiator has the spout on the bottom now, but, they didn't use a bigger diameter tube, so the spout comming off the water pump isn't the same diameter, which means I will have to get creative with the hose. Should be a running bike tomarrow though.
