Kevin_s 04 CRF450 -500 CONVERSION

Post by **AlisoBob** » January 5th, 2012, 6:47 pm

kevin_s wrote:One question I do have is this..where is the exta hight in the jug with the longer rod engine does the exhaust port change

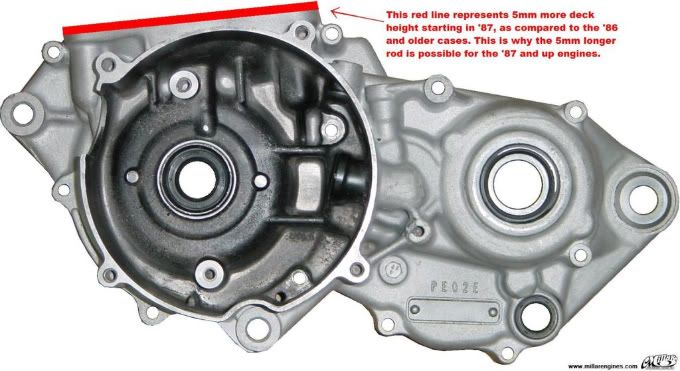

Its 5mm, not 6.5mm ( 1/4")

The whole jug moves up, including the port locations...

kevin_s · Post by **kevin_s** » January 5th, 2012, 7:42 pm

Ok thanks for that Bob.

Rue · Post by **Rue** » January 8th, 2012, 9:31 pm

Your build is looking good as well my friend, glad you found a home for the service honda.

kevin_s · Post by **kevin_s** » January 9th, 2012, 5:06 pm

Rue wrote:Your build is looking good as well my friend, glad you found a home for the service honda.

Rue,that was hard for me to part with that bike.by far my favorite woods bike I have had,but I flat out just needed the cash

kevin_s · Post by **kevin_s** » January 9th, 2012, 5:08 pm

I made a few engine jigs if anybody wants one.

http://www.ebay.com/itm/190625800549?_t ... _500wt_949

Rue · Post by **Rue** » January 9th, 2012, 5:56 pm

kevin_s wrote:I made a few engine jigs if anybody wants one.

http://www.ebay.com/itm/190625800549?_t ... _500wt_949

I hear you that's why I let her go.. I'd buy one but I'm a lil low on funds right now...

Post by **AlisoBob** » January 10th, 2012, 5:40 am

Those are nice!!!

Anyone building a bike really needs one, especially during welding.

I'd start a new thread, with some photos...

Mik329 · Post by **Mik329** » January 10th, 2012, 5:22 pm

kevin_s wrote:I made a few engine jigs if anybody wants one.

http://www.ebay.com/itm/190625800549?_t ... _500wt_949

funny how admin asked for money over there for advertising. I bet I get banned for my comment.

WTF, I used to discount mine 20 bucks from Ebay for the board members here. It just became too much work after selling about 30 jigs. Good luck with those, you will sell a few on Flebay and here for sure!

kevin_s · Post by **kevin_s** » January 10th, 2012, 6:13 pm

Mik329 wrote:
kevin_s wrote:I made a few engine jigs if anybody wants one.

http://www.ebay.com/itm/190625800549?_t ... _500wt_949
funny how admin asked for money over there for advertising. I bet I get banned for my comment. WTF, I used to discount mine 20 bucks from Ebay for the board members here. It just became too much work after selling about 30 jigs. Good luck with those, you will sell a few on Flebay and here for sure!

Thanks dude

Post by **AlisoBob** » January 10th, 2012, 9:50 pm

Mik329 wrote:...funny how admin asked for money over there for advertising. I bet I get banned for my comment. WTF, I used to discount mine 20 bucks from Ebay for the board members here!

Re: engine jigs now available while they last
Reply #10 - Today at 2:13pm ST502 wrote on Today at 5:45am:

"So when you sell these, are you going to fork over a few bucks to AP to help maintain the site since you're using it for free advertising?"

Thats so friggin' weak..... Just jack up the price $15, and let everyone know that $15 went into John's personal beer fund.

Roosty and Iggy both told them to pound sand... I suggest everyone should.

Kevin and Mik were providing a service , barely covering their costs.... and they got their hand out?

Sounds ALOT like this to me....

kevin_s · Post by **kevin_s** » January 18th, 2012, 5:30 pm

AlisoBob wrote:
Mik329 wrote:...funny how admin asked for money over there for advertising. I bet I get banned for my comment. WTF, I used to discount mine 20 bucks from Ebay for the board members here!
Re: engine jigs now available while they last
Reply #10 - Today at 2:13pm ST502 wrote on Today at 5:45am:

"So when you sell these, are you going to fork over a few bucks to AP to help maintain the site since you're using it for free advertising?"

Thats so friggin' weak..... Just jack up the price $15, and let everyone know that $15 went into John's personal beer fund.

Roosty and Iggy both told them to pound sand... I suggest everyone should.

Kevin and Mik were providing a service , barely covering their costs.... and they got their hand out?

Sounds ALOT like this to me....

That's why I post here Bob,and thank you again..

kevin_s · Post by **kevin_s** » January 18th, 2012, 5:43 pm

Back on topic..

I received my new intake boot today and now the carb lines up nice with the 98 250 air box boot.I'm going to make the air box mods tomorrow.

I did notice I have some interference at the reed cage with the expansion chamber,looks like I might have to dimple the pipe a little bit.

Also,if I can modify the fuel tank outlet I might not have to mod the tank.
I'll post up some pictures if I make any progress.

Post by **AlisoBob** » January 18th, 2012, 5:56 pm

kevin_s wrote: I'll post up some pictures if I make any progress.

Building a A/F is like eating an elephant.... it seems like a huge undertaking.... but all your really doing is just taking one bite after another till' your done.

Keep at it.... you'll get there!

kevin_s · Post by **kevin_s** » January 19th, 2012, 4:11 pm

I got a few hours to work on it today.

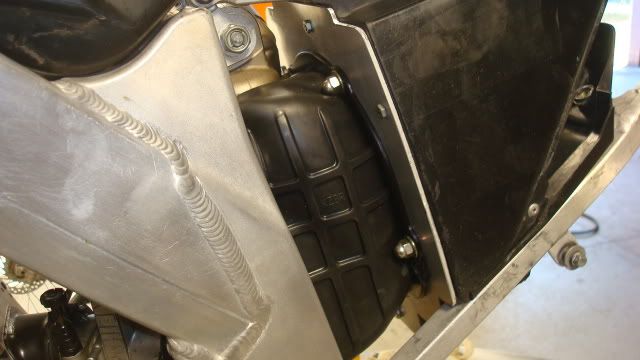

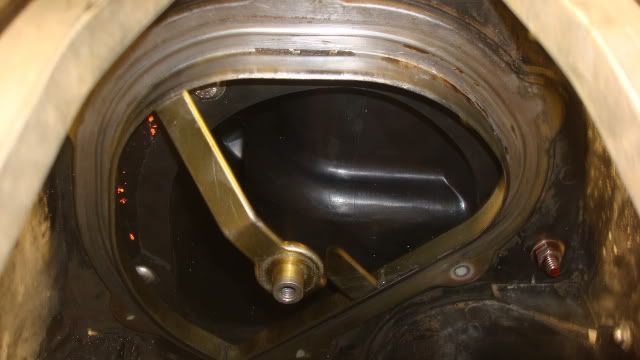

Air box is done,came out pretty good,carb lines up perfect.
Still need to push in the top of the boot where it hits the frame.
I tried the pro circuit pipe and now we have clearance at the reed and carb boot.

Just need to sell some jigs so I can buy some parts for this one.

Post by **AlisoBob** » January 19th, 2012, 4:48 pm

Heat up the boot pretty hot....

Shove in a piece of wood to hold it away from the frame

Let it cool overnight.

The boot will relax a bit, so over-do it a little on the wood thickness.

Done.

OR.....

Grind some of the frame away like this dood I know....

Post by **AlisoBob** » January 19th, 2012, 4:50 pm

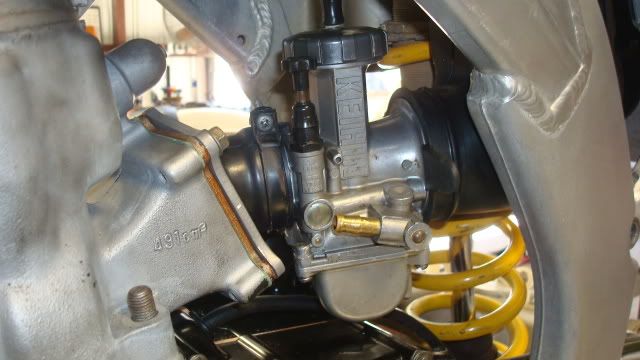

That aint no PWK.... Call me.

Like the Acorn nutz....

asteroid500 · Post by **asteroid500** » January 19th, 2012, 5:31 pm

Just try'd to buy an fleabay jig of ya but none listed ... any on the horizon.

kevin_s · Post by **kevin_s** » January 19th, 2012, 6:29 pm

asteroid500 wrote:Just try'd to buy an fleabay jig of ya but none listed ... any on the horizon.

PM sent mate.

kevin_s · Post by **kevin_s** » January 26th, 2012, 7:33 pm

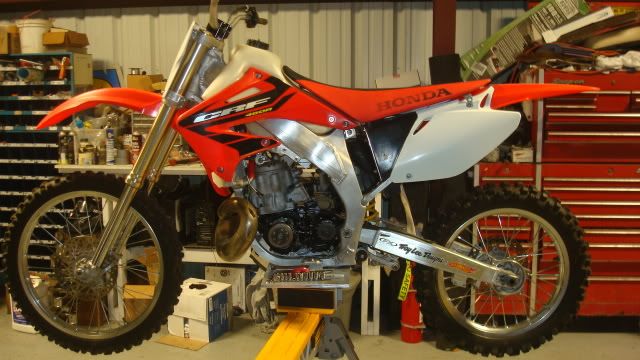

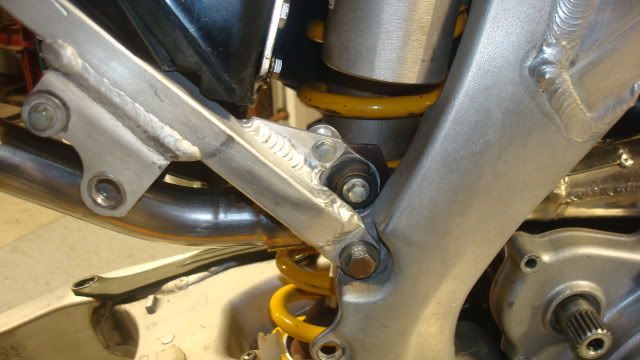

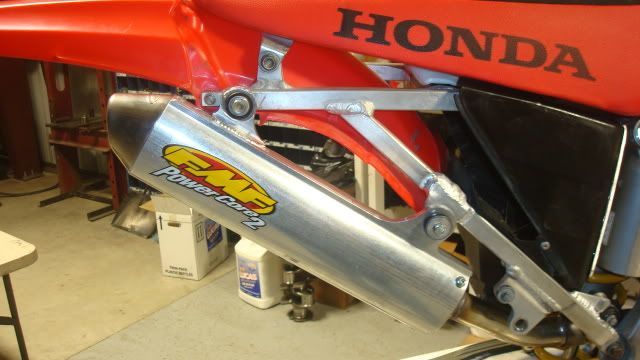

A little progress,silencer mount's are done along with rear pipe mount.

kevin_s · Post by **kevin_s** » February 27th, 2012, 8:04 pm

Got some more parts,just need to pull it all back apart and re-assemble,maybe ride it next weekend.

Rue · Post by **Rue** » February 27th, 2012, 8:17 pm

Make sure to give a full ride report.

freeride588 · Post by **freeride588** » February 28th, 2012, 7:05 am

kevin_s wrote:Got some more parts,just need to pull it all back apart and re-assemble,maybe ride it next weekend.

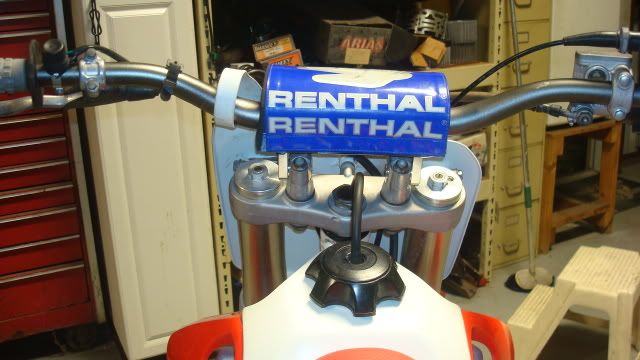

Hey kevin what handlebars do you have on that bike ans how tall are you. Thanks

kevin_s · Post by **kevin_s** » February 28th, 2012, 10:30 am

[quote="freeride58][/quote]

Hey kevin what handlebars do you have on that bike ans how tall are you. Thanks[/quote]

The bars appear to be cr high bends.
I am 6ft.
Am I going to need risers,?I just put 2inch risers on my steely and that helped me alot.

freeride588 · Post by **freeride588** » February 28th, 2012, 7:21 pm

kevin_s wrote:[quote="freeride58]

Hey kevin what handlebars do you have on that bike ans how tall are you. Thanks[/quote]

The bars appear to be cr high bends.
I am 6ft.
Am I going to need risers,?I just put 2inch risers on my steely and that helped me alot.

[/quote]

I was wondering because i am looking for some higher bars and yours looked nice and high. I like those risers who makes them. Bike looks bad ass man.

Post by **AlisoBob** » February 28th, 2012, 7:33 pm

The FMX bars are pretty tall

Pro-Taper Metal Mulisha 1 1/8" Handlebar with Grips Sizing Chart
Width Height Pull Back
Deegan FMX Bend 31.50" 4.25" 2.71"
Metal Mulisha MX Bend 31.50" 3.62" 2.24"
Twitch FMX Bend 30.50" 4.75" 2.17"
